| BTU Cooling Rating | : | 42,000 Btu/hr |
| Compressor Type | : | Scroll |
| Depth | : | 29.75 in |
| EER | : | 10.5~11.8 |
| Height | : | 31.00 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 30 A |
| Minimum Circuit Ampacity (MCA) | : | 18 A |
| Model Number | : | RA13 |
| Number of Stages | : | Single |
| Packaged Depth | : | 32.38 in |
| Packaged Height | : | 32.75 in |
| Packaged Width | : | 32.38 in |
| Phase | : | 3 ph |
| Product Family | : | Classic |
| Product Weight | : | 188 lb |
| Refrigerant Type | : | R-410A |
| SEER | : | 13.0~14.0 |
| Shipping Weight | : | 195 lb |
| Sound Level | : | 73 dBA |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 3.5 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 29.75 in |

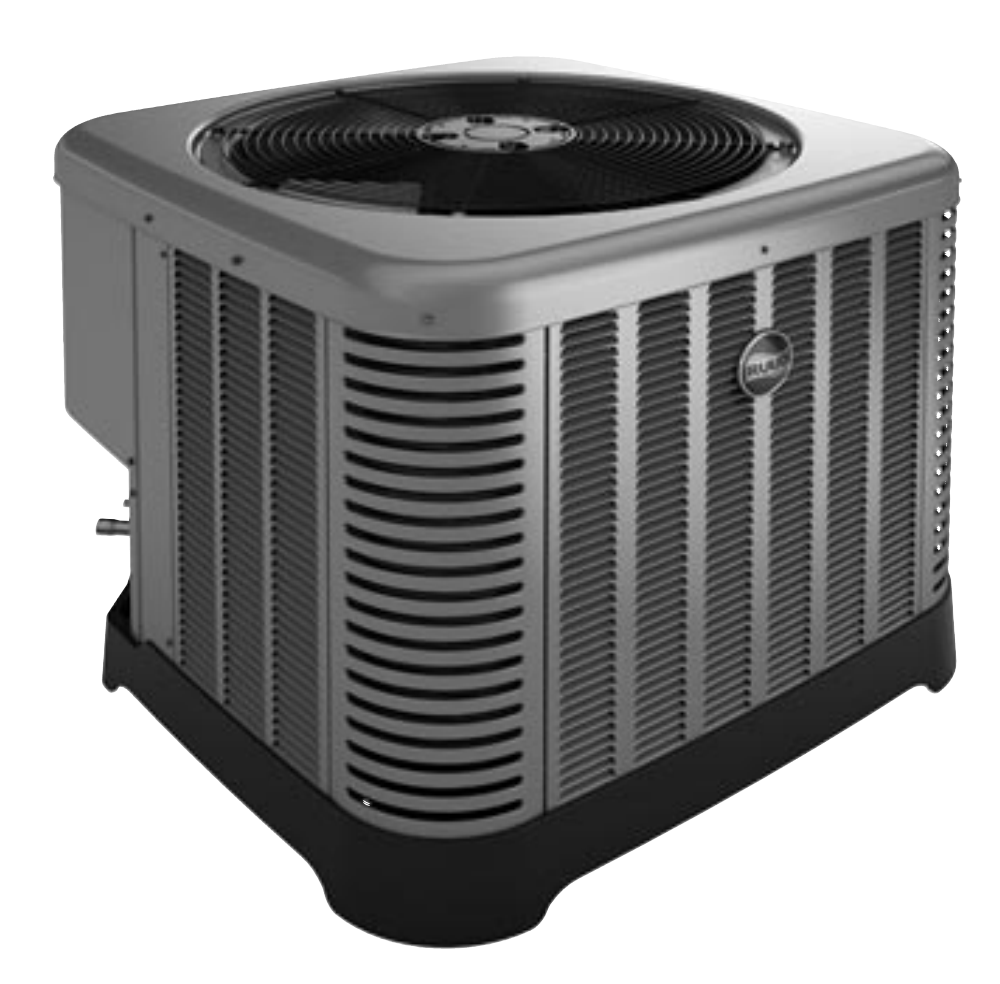

The Rheem Classic Series RA13 air conditioner is a dependable and efficient single-stage condenser designed for long-lasting performance. It features a reliable scroll compressor and a sturdy cabinet with a powder-coat finish to withstand the elements.This unit is engineered with the technician in mind, incorporating features like a composite base pan to reduce sound and corrosion, along with PlusOne™ service access for simplified installation and maintenance. The single-row condenser coil also ensures easy cleaning, helping to maintain optimal efficiency over the unit's lifespan.
- Reliable Operation:Equipped with a scroll compressor that uses 70% fewer moving parts for higher efficiency and dependability.
- Durable Base Pan:Features a composite base pan that dampens sound, eliminates corrosion, and reduces the number of fasteners needed.
- Enhanced Serviceability:Plus
- One™ Triple Service Access provides a 15-inch wide corner opening, making repairs easier and faster.
- Simplified Maintenance:The single-row condenser coil design allows for thorough cleaning to maintain out-of-the-box performance.
- Expanded Work Area:Plus
- One™ Expanded Valve Space creates a minimum 27-square-inch working area for easier service valve access.
- Protective Finish:A powder-coat paint system and rust-resistant screws provide a durable, professional finish confirmed to withstand 1500-hour salt spray tests.
