| Air Flow Direction | : | Vertical |
| BTU Cooling Rating (Custom) | : | 57,000 BTU/h |
| BTU Cooling Rating | : | 54,000 BTU/h |
| Compressor Type | : | Scroll |
| Depth | : | 35.75 in |
| EER2 Range | : | 9.0 |
| EER2 | : | 9.0 |
| ENERGY STAR Certified | : | No |
| Height | : | 45 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 35 A |
| Minimum Circuit Ampacity (MCA) | : | 22 A |
| Model Number | : | RA13NY |
| Number of Stages | : | Single-Stage |
| Packaged Depth | : | 38.38 in |
| Packaged Height | : | 46.5 in |
| Packaged Width | : | 38.38 in |
| Phase | : | 3 ph |
| Product Family | : | Endeavor Line Classic |
| Product Weight | : | 272 lbs |
| Refrigerant Type | : | R-454B |
| SEER2 Rane | : | 13.4 |
| SEER2 | : | 13.0 |
| Shipping Weight | : | 279 lbs |
| Sound Level | : | 76 dB(A) |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 5.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 35.75 in |

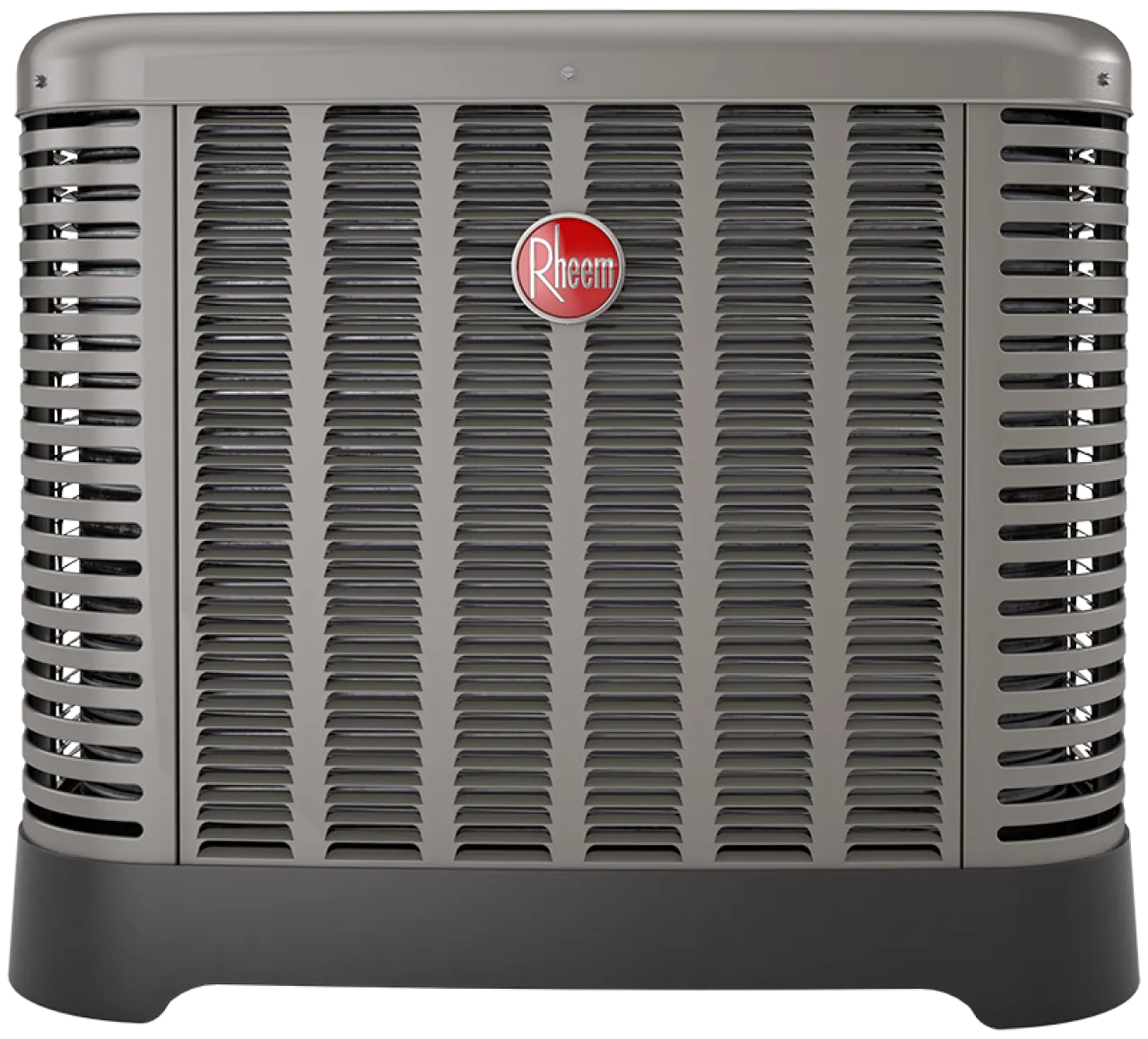

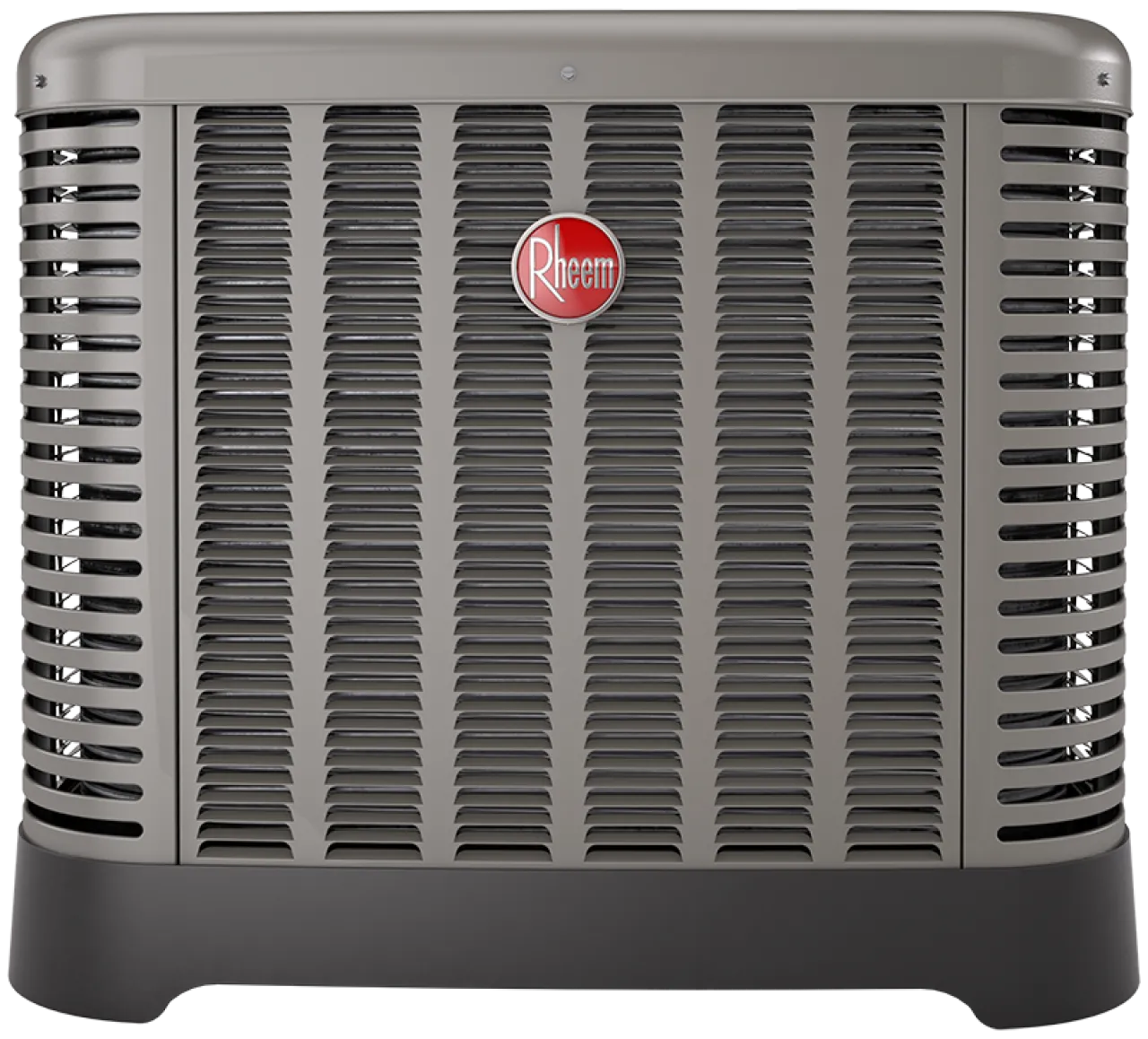

The Rheem Endeavor Line Classic Series RA13NY is a single-stage air conditioning condenser designed for reliable performance and efficiency. It features a durable scroll compressor and operates with low-GWP R-454B refrigerant, ensuring compliance with modern environmental standards while delivering 5 tons of cooling capacity.This unit is built for durability and ease of service, featuring a composite base pan that resists corrosion and helps provide quiet operation. Thoughtful design elements such as external gauge ports, service trays, and quick-release louver panels simplify maintenance and installation for the professional.
- Enhanced Serviceability:Features Plus
- One® Triple Service Access with a 15-inch wide corner opening and Plus
- One® Expanded Valve Space for an easier and faster repair process.
- Efficient Coil Design:Utilizes a 7mm copper condenser coil that requires less refrigerant, which allows for a smaller unit footprint while enhancing system reliability.
- Advanced Safety:Includes the Plus
- One® Refrigerant Detection System™, an integrated sensor and mitigation board compatible with any 24
- V thermostat that pauses operation if excess A2
- L refrigerant is detected.
- Durable Construction:Built with a corrosion-resistant composite base pan, powder-coated paint, and rugged corner posts to protect internal components and ensure long-lasting durability.
- Quiet Operation:Designed with acoustics in mind, incorporating sound-dampening features like a composite base pan and innovative compressor technologies for reduced noise levels.
- Peace of Mind:Covered by a 10-year conditional parts warranty upon registration.
