| Air Flow Direction | : | Vertical |
| BTU Cooling Rating (Custom) | : | 28,400 BTU/h |
| BTU Cooling Rating | : | 30,000 BTU/h |
| Compressor Type | : | Scroll |
| Depth | : | 33.75 in |
| EER2 Range | : | 8.0-13.0 |
| EER2 | : | 8.0~9.0~10.0~11.0~12.0~13.0 |
| ENERGY STAR Certified | : | Yes |
| Height | : | 25 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 30 A |
| Minimum Circuit Ampacity (MCA) | : | 19 A |
| Model Number | : | RA13NZ |
| Number of Stages | : | Single-Stage |
| Packaged Depth | : | 36.625 in |
| Packaged Height | : | 27.063 in |
| Packaged Width | : | 36.625 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line Classic |
| Product Weight | : | 163 lbs |
| Refrigerant Type | : | R-410A |
| SEER2 Rane | : | 13.4-16.0 |
| SEER2 | : | 13.0~14.0~15.0~16.0 |
| Shipping Weight | : | 170 lbs |
| Sound Level | : | 71 dB(A) |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 2.5 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 33.75 in |

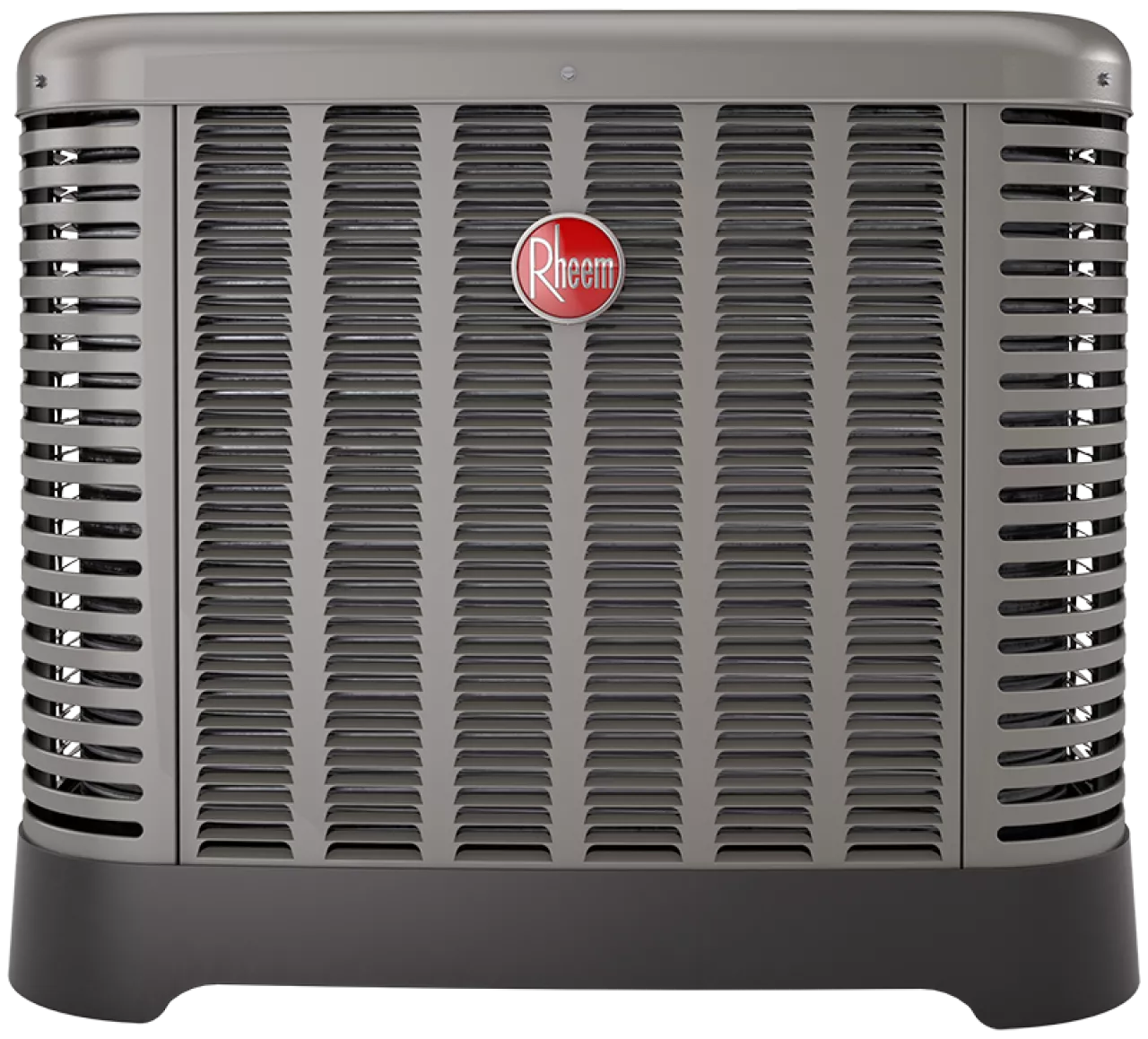

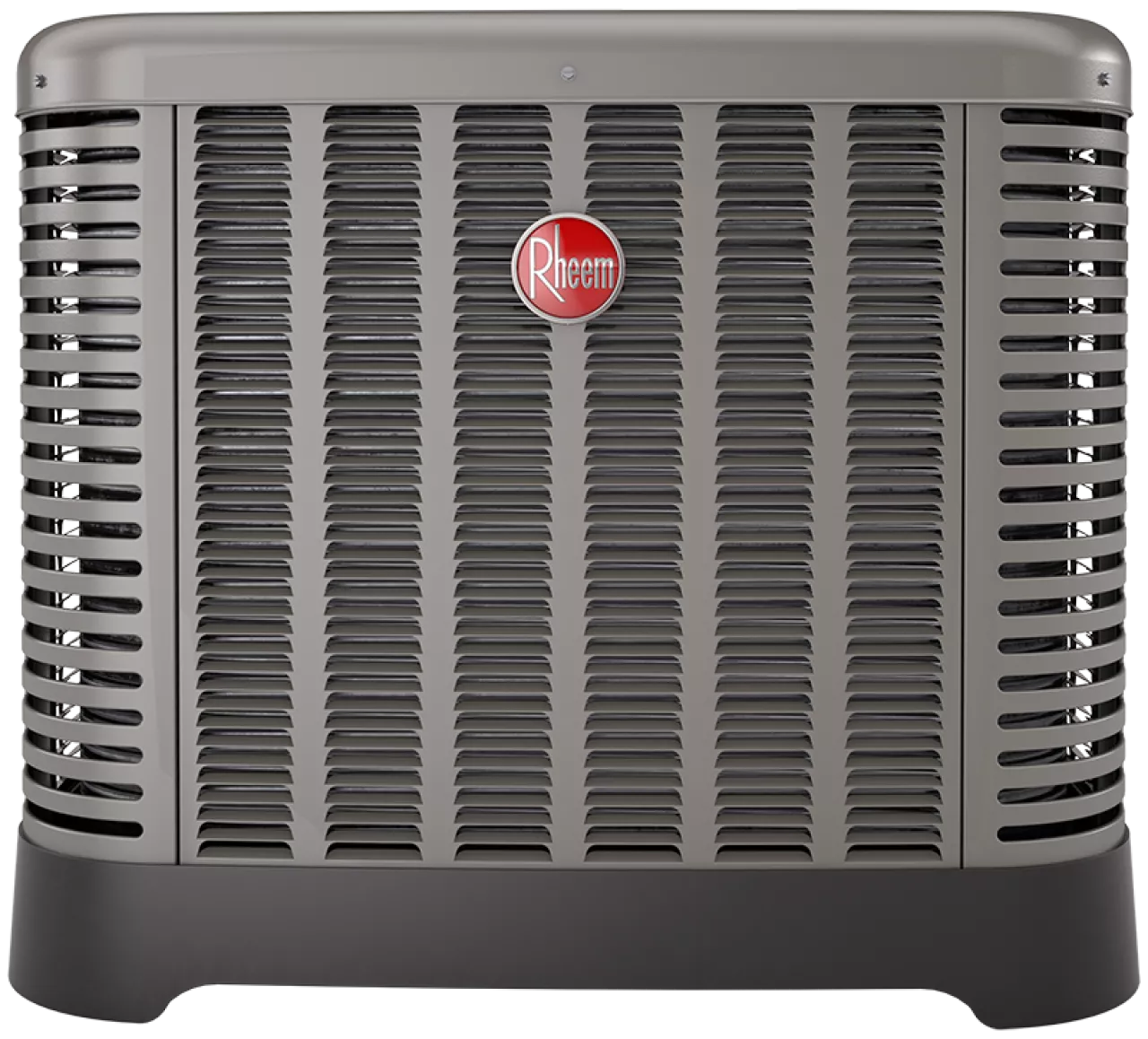

The Endeavor Line Classic Series single-stage air conditioner delivers reliable and efficient cooling for residential applications. With a durable scroll compressor at its core, this unit achieves a SEER2 rating up to 16.0 and is ENERGY STAR certified, ensuring energy savings and consistent comfort.Built for longevity and ease of service, the condenser is protected by a robust cabinet with a powder-coat finish and a corrosion-resistant composite base pan. The design incorporates sound-dampening features for quiet operation and provides technicians with enhanced access to internal components, simplifying installation and maintenance.
- Service Access:Features the Plus
- One® Triple Service Access design with a 15-inch wide corner opening and removable louver panels for faster, easier repairs.
- Expanded Valve Space:The Plus
- One® valve space provides a 27-square-inch working area, making refrigerant line connections and servicing more convenient for technicians.
- Efficient Coil Design:A 7 mm condenser coil requires less refrigerant, reducing environmental impact and contributing to a smaller, lighter unit footprint.
- Durable Construction:Built with a powder-coated paint system, rust-resistant screws, and a corrosion-resistant composite base pan to ensure long-lasting durability and appearance.
- Quiet Operation:Engineered with integrated sound-dampening features, including a composite base pan and optimized fan design, for quiet home comfort.
- Warranty Protection:Backed by a 10-year conditional parts warranty upon registration, providing peace of mind.
