| Air Flow Direction | : | Vertical |
| BTU Cooling Rating | : | 18,000 BTU/h |
| Compressor Type | : | Scroll |
| Depth | : | 29.75 in |
| EER2 Range | : | 10.05-13.5 |
| EER2 | : | 10.0~11.0~12.0~13.0 |
| Energy Star Certified | : | Yes |
| Height | : | 25 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 15 A |
| Minimum Circuit Ampacity (MCA) | : | 12 A |
| Model Number | : | RA15AY |
| Number of Stages | : | Single-Stage |
| Packaged Depth | : | 32.38 in |
| Packaged Height | : | 26.5 in |
| Packaged Width | : | 32.38 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line Classic |
| Product Weight | : | 144 lbs |
| Refrigerant Type | : | R-454B |
| SEER2 Range | : | 12.0-16.0 |
| SEER2 | : | 12.0~13.0~14.0~15.0~16.0 |
| Shipping Weight | : | 151 lbs |
| Sound Level | : | 71 dB(A) |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 1.5 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 29.75 in |

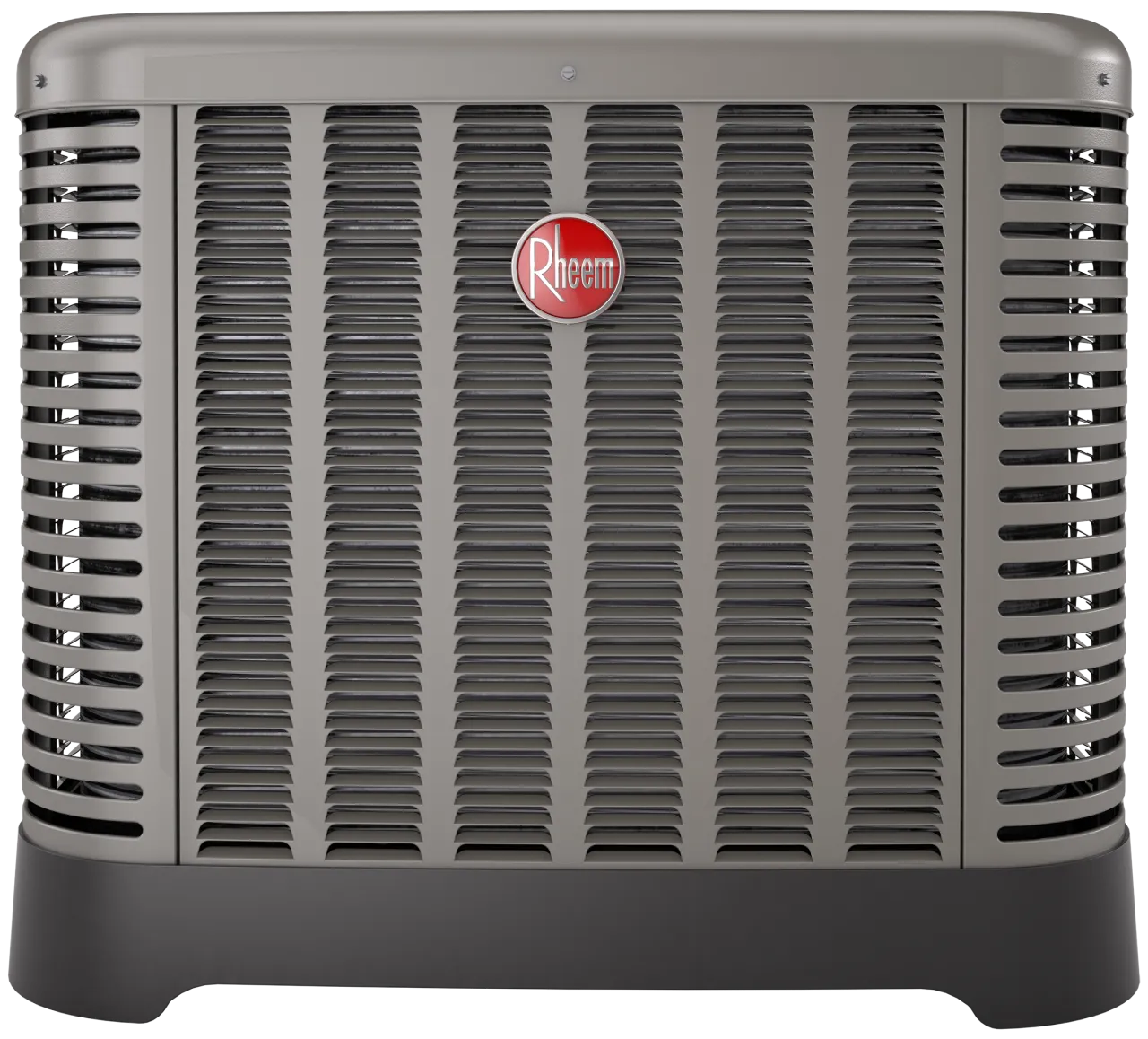

The Rheem® Endeavor Line Classic RA15AY is a single-stage air conditioning condenser designed for reliable and efficient residential cooling. This ENERGY STAR® certified unit delivers a SEER2 rating of up to 16.0, ensuring effective performance.Engineered for the latest environmental standards, it operates with low-GWP R-454B refrigerant. The unit features a durable scroll compressor and is designed for straightforward installation and service.
