| Air Flow Direction | : | Vertical |
| BTU Cooling Rating (Custom) | : | 34,200 BTU/h |
| BTU Cooling Rating | : | 36,000 BTU/h |
| Compressor Type | : | Scroll |
| Depth | : | 33.75 in |
| EER2 Range | : | 10.05-13.5 |
| EER2 | : | 10.0~11.0~12.0~13.0 |
| ENERGY STAR Certified | : | Yes |
| Height | : | 31 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 30 A |
| Minimum Circuit Ampacity (MCA) | : | 20 A |
| Model Number | : | RA16AY |
| Number of Stages | : | Two-Stage |
| Packaged Depth | : | 36.38 in |
| Packaged Height | : | 35.2 in |
| Packaged Width | : | 36.38 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line Classic Plus |
| Product Weight | : | 208 lbs |
| Refrigerant Type | : | R-454B |
| SEER2 Rane | : | 12.0-17.0 |
| SEER2 | : | 12.0~13.0~14.0~15.0~16.0~17.0 |
| Shipping Weight | : | 215 lbs |
| Sound Level | : | 71.9 dB(A) |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 3.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 33.75 in |

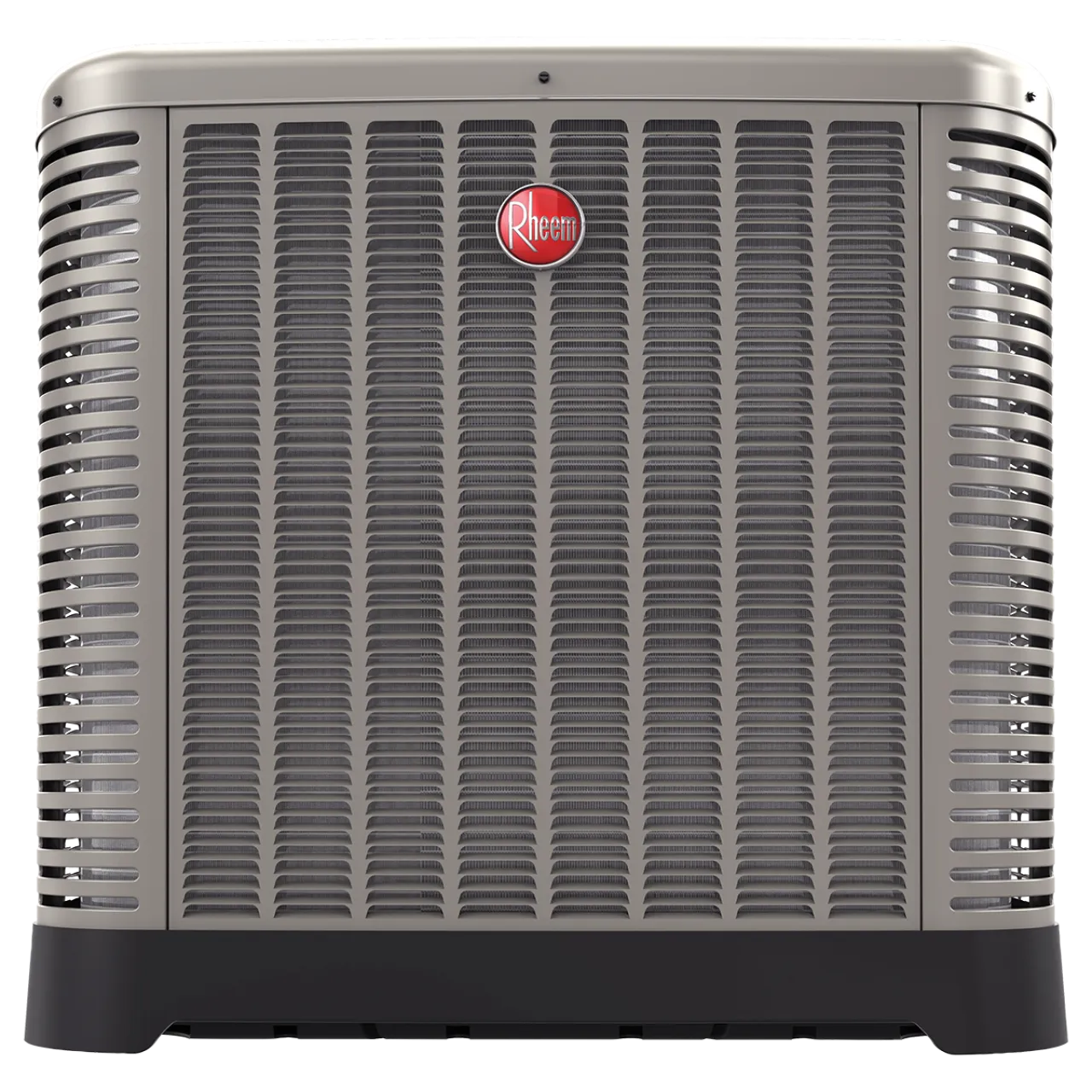

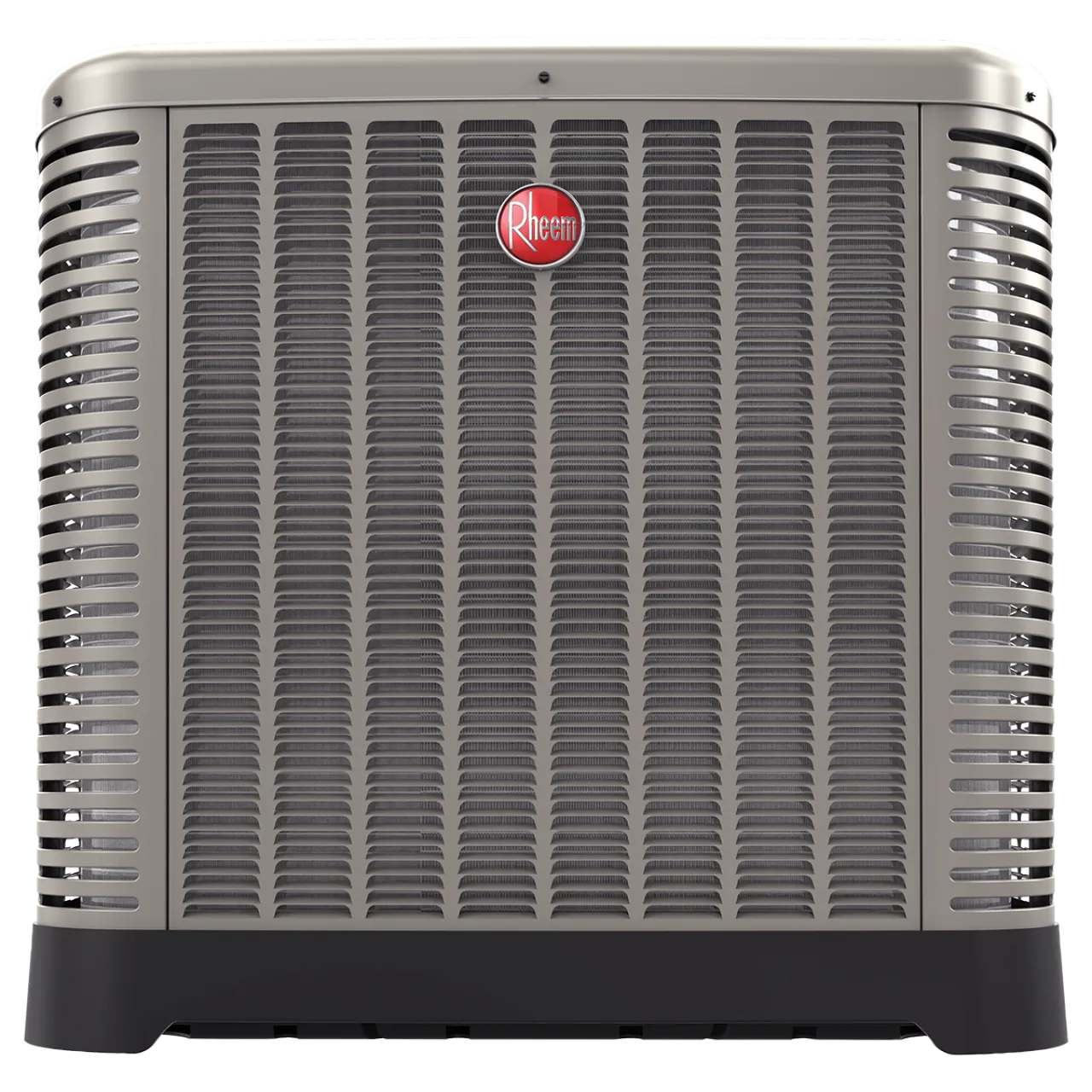

The Endeavor Line Classic Plus RA16AY air conditioner provides efficient, two-stage cooling for residential homes, achieving ratings up to 17.0 SEER2 for enhanced comfort and energy savings. Utilizing low-GWP R-454B refrigerant, this unit is designed for both performance and environmental compliance.Engineered for durability and quiet operation, the condenser features a protective cabinet and sound-dampening technology. It also incorporates several technician-friendly PlusOne® service features, including expanded valve space and easy-access panels, to simplify installation and maintenance.
- Two-Stage Compressor:Features a two-stage scroll compressor that provides precise temperature control, lower humidity, and greater efficiency.
- Service Accessibility:Includes Plus
- One® Expanded Valve Space and Triple Service Access, providing a larger working area and easy-to-remove panels for faster service.
- Quiet Performance:Swept Wing Fan Technology and integrated sound-dampening features ensure quieter operation and improved unit acoustics.
- Efficient Coil:The 7mm copper condenser coil requires less refrigerant, allowing for a smaller, lighter unit footprint while enhancing reliability.
- Durable Cabinet:Designed with curved louver panels, rugged corner posts, and a corrosion-resistant composite base pan for excellent component protection.
- Sustainable Refrigerant:Utilizes R-454
- B, a low Global Warming Potential (GWP) refrigerant that complies with future environmental standards.
