| Air Flow Direction | : | Vertical |
| BTU Cooling Rating (Custom) | : | 34,600 BTU/h |
| BTU Cooling Rating | : | 36,000 BTU/h |
| Compressor Type | : | Scroll |
| Depth | : | 33.75 in |
| EER2 Range | : | 9.8-12.0 |
| EER2 | : | 9.0~10.0~11.0~12.0 |
| ENERGY STAR Certified | : | Yes |
| Height | : | 39 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 45 A |
| Minimum Circuit Ampacity (MCA) | : | 29 A |
| Model Number | : | RA18AZ |
| Number of Stages | : | Inverter |
| Packaged Depth | : | 37.64 in |
| Packaged Height | : | 41.56 in |
| Packaged Width | : | 37.56 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line Prestige |
| Product Weight | : | 236 lbs |
| Refrigerant Type | : | R-410A |
| SEER2 Rane | : | 16.0-19.0 |
| SEER2 | : | 16.0~17.0~18.0~19.0 |
| Shipping Weight | : | 244 lbs |
| Sound Level | : | 72 dB(A) |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 3.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 33.75 in |

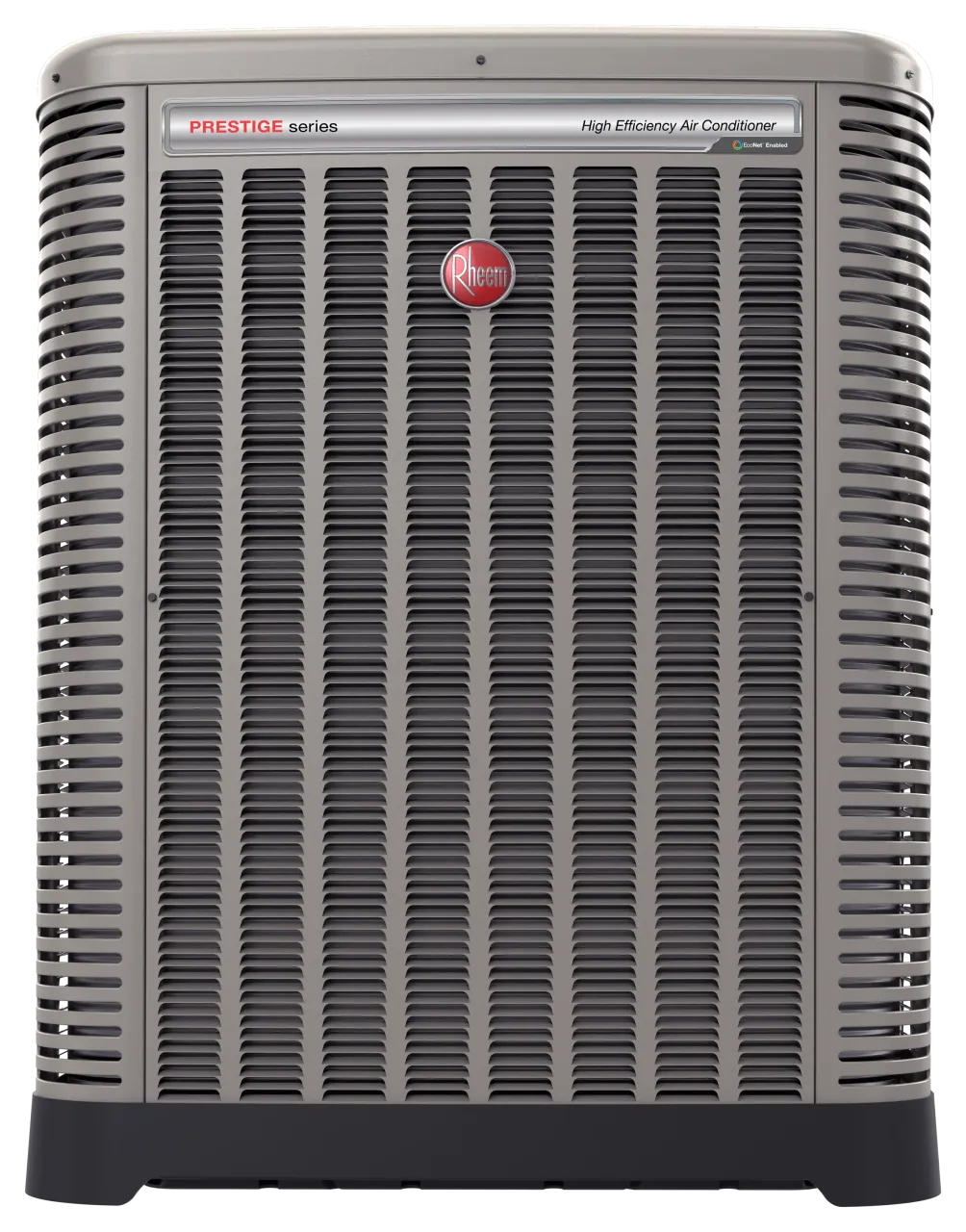

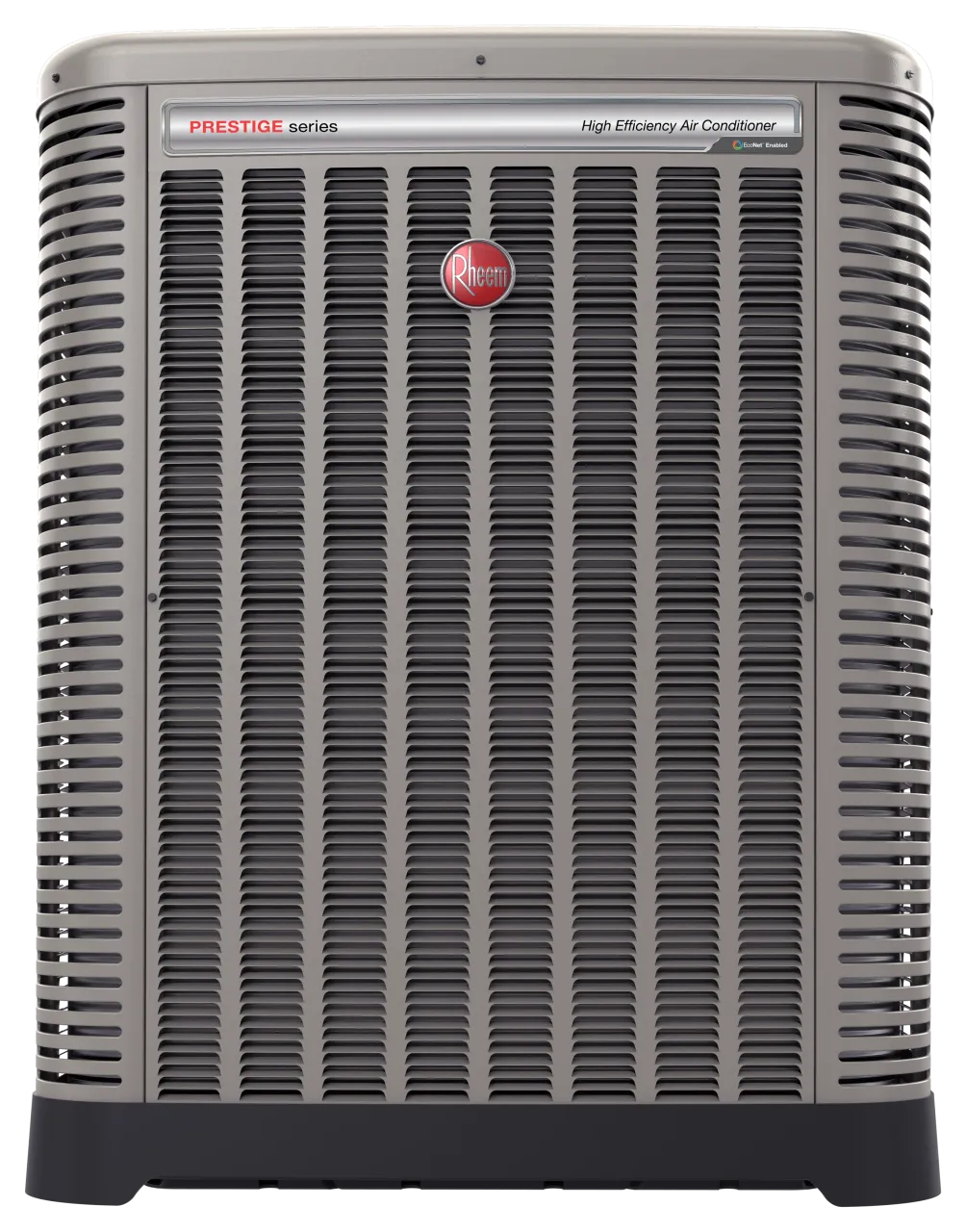

The Rheem Endeavor Line Prestige Series RA18AZ is a high-efficiency air conditioner featuring an inverter-driven, variable-speed compressor. This technology allows the unit to continuously adjust its cooling output to precisely match demand, resulting in significant energy savings, superior humidity control, and consistent indoor comfort.Designed for modern performance and reliability, this unit is EcoNet® enabled and includes Bluetooth connectivity for streamlined diagnostics and setup. Its construction emphasizes both durability and quiet operation, incorporating features like a composite base pan and sound-dampening technologies. The cabinet is also designed with serviceability in mind, providing ample access for technicians to perform maintenance efficiently.
- Smart Controls:Eco
- Net® enabled for automatic system configuration, with Bluetooth connectivity for advanced setup, monitoring, and troubleshooting via the Rheem Contractor App.
- Inverter Technology:Features a variable-speed scroll compressor that operates between 40% and 100% of capacity for precise temperature and humidity control.
- Service-Friendly Design:Plus
- One® Triple Service Access and Expanded Valve Space provide a large working area for faster and easier installation and repairs.
- Quiet Performance:A standard compressor sound blanket, swept-wing fan technology, and composite base pan are integrated to ensure quiet operation.
- Enhanced Reliability:Equipped with a Brushless DC (BLDC) condenser motor that improves reliability and is easier to service.
- Durable Construction:Built with a corrosion-resistant composite base pan, rugged corner posts, and a powder-coat paint system for long-lasting protection against the elements.
