| Air Flow Direction | : | Vertical |
| BTU Cooling Rating (Custom) | : | 22,800 BTU/h |
| BTU Cooling Rating | : | 24,000 BTU/h |
| Compressor Type | : | Scroll |
| Depth | : | 36.13 in |
| EER2 Range | : | 11.7-13.0 |
| EER2 | : | 11.0~12.0~13.0 |
| ENERGY STAR Certified | : | Yes |
| Height | : | 45.16 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 20 A |
| Minimum Circuit Ampacity (MCA) | : | 12 A |
| Model Number | : | RA19AY |
| Number of Stages | : | Inverter |
| Packaged Depth | : | 39.37 in |
| Packaged Height | : | 48.18 in |
| Packaged Width | : | 39.64 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line Prestige |
| Product Weight | : | 230 lbs |
| Refrigerant Type | : | R-454B |
| SEER2 Rane | : | 17.0-21.0 |
| SEER2 | : | 17.0~18.0~19.0~20.0~21.0 |
| Shipping Weight | : | 238 lbs |
| Sound Level | : | 68 dB(A) |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 2.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 36.13 in |

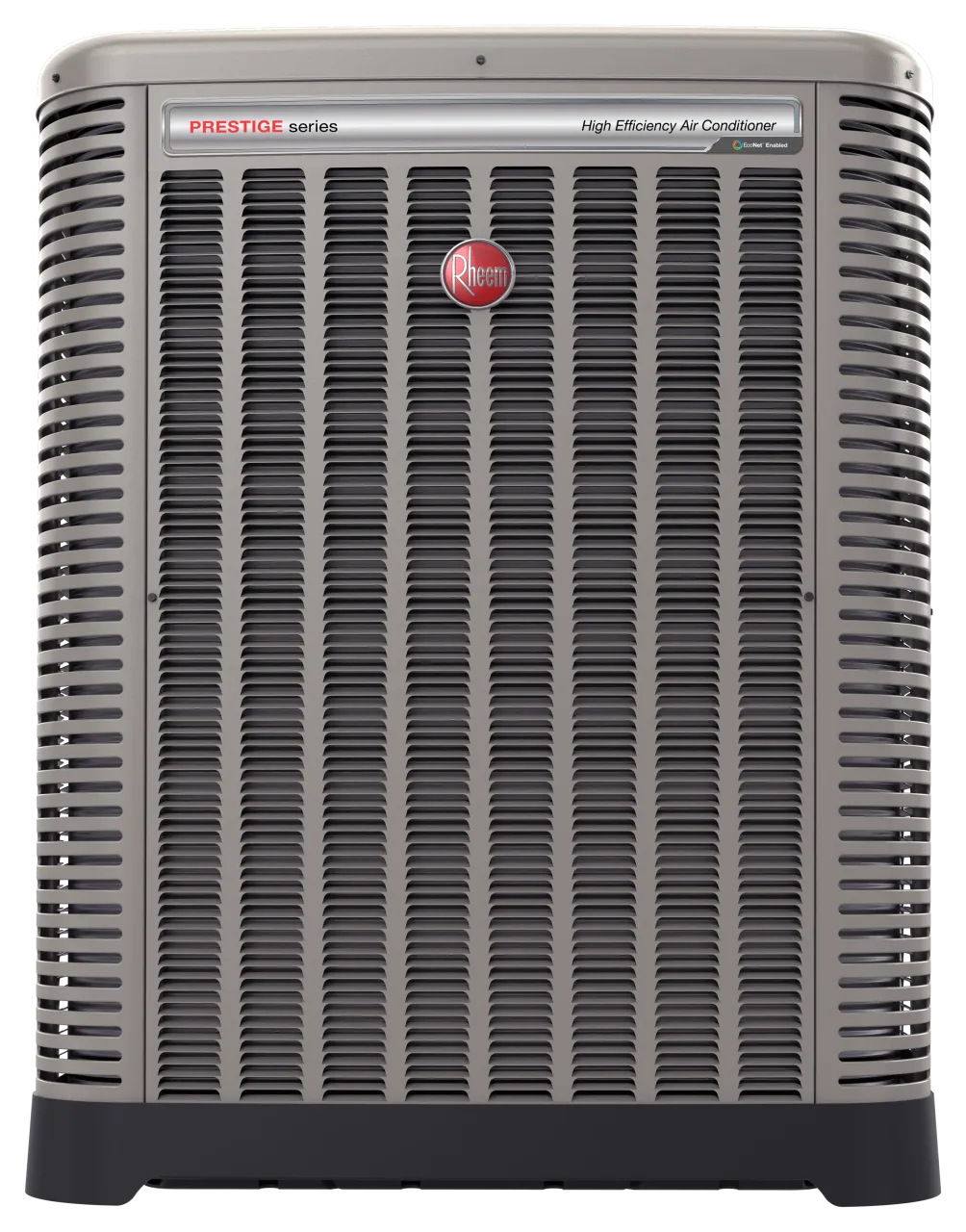

The Rheem Endeavor Line Prestige Series A/C condenser delivers premium comfort and high efficiency for residential applications. Its inverter-driven, variable-speed scroll compressor provides precise temperature and humidity control by operating between 40% and 100% of its capacity, ensuring consistent performance. This unit is ENERGY STAR® certified and uses R-454B, a refrigerant with a lower Global Warming Potential (GWP).Built for durability and ease of service, this condenser features curved louvered panels and a corrosion-resistant composite base pan to protect internal components. It is also EcoNet® enabled, allowing for automatic system optimization and advanced diagnostics when connected to compatible equipment.
- Eco
- Net® Enabled:Provides automatic system configuration and performance optimization for simplified setup.
- Advanced Diagnostics:Features Plus
- One® Diagnostics and Bluetooth® connectivity, allowing for advanced setup, monitoring, and troubleshooting via the Rheem Contractor app.
- Quiet Operation:Utilizes Swept Wing Fan Technology and an innovative compressor design to reduce operating noise levels.
- Enhanced Serviceability:Offers Plus
- One® Triple Service Access and Expanded Valve Space, providing a larger working area and easier access to internal components for faster repairs.
- Reliable Motor:Equipped with a Brushless DC (BLDC) condenser motor that enhances reliability and simplifies service.
- Refrigerant Safety:Includes the Plus
- One® Refrigerant Detection System, which pauses operation if excess A2
- L refrigerant is detected for enhanced system protection.
