| Air Flow Direction | : | Upflow~Downflow~Horizontal~Multi-Position |
| BTU Rating | : | 48,000 BTU/h |
| Coil Casing | : | Cased |
| Coil Material | : | Aluminum Fin~Aluminum Tube |
| Depth | : | 21.6 in |
| Drain Pan Material | : | Composite / Polymer |
| Height | : | 28 in |
| Liquid Line Size | : | 3/8 in |
| Model Number | : | RCFY |
| Number of Rows | : | 2 |
| Product Family | : | Endeavor |
| Product Weight | : | 71 lbs |
| Refrigerant Type | : | R-454B |
| Refrigeration Control Type | : | TXV |
| Shipping Weight | : | 78 lbs |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 4.0 Ton |
| Width | : | 21 in |

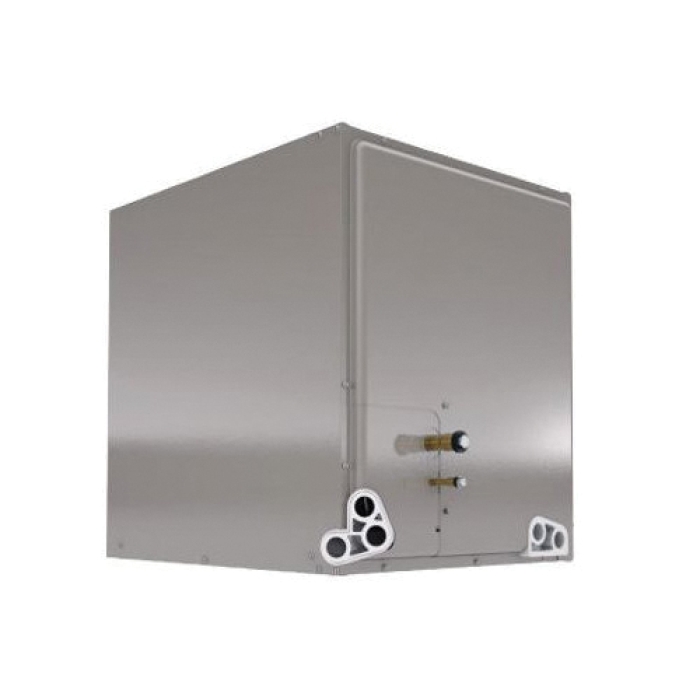

This Rheem® Endeavor Line cased coil is designed for use with compatible Rheem® outdoor units in residential systems. It offers versatile installation with support for upflow, downflow, and horizontal configurations, making it a flexible choice for both new construction and furnace replacements.Engineered for low-GWP R-454B refrigerant, this 4-ton coil delivers 48,000 BTU/h of nominal capacity. The unit includes a TXV for precise refrigerant metering and is constructed with durable materials to ensure reliable performance.
- N-Coil Design: Maximizes system performance while minimizing the required installation height.
- Refrigerant Detection: Features the PlusOne® Refrigerant Detection System™ with an A2L sensor and mitigation board for enhanced safety and simplified commissioning.
- Installation Flexibility: Bi-directional airflow design eliminates the need to switch internal components for horizontal left or right applications.
- Durable Construction: Built with aluminum fins bonded to internally grooved aluminum tubing and is factory leak-tested for long-term reliability.
- Condensate Management: Equipped with a corrosion-free, heat-resistant thermal-set drain pan that features two 3/4 in NPT drain connections for easy setup.
