| Air Flow Direction | : | Upflow~Downflow~Horizontal~Multi-Position |
| BTU Rating (Custom) | : | 24,000 BTU/h |
| BTU Rating | : | 24,000 BTU/h |
| Coil Casing | : | Cased |
| Coil Material | : | Aluminum Fin~Aluminum Tube |
| Depth | : | 21.688 in |
| Drain Pan Material | : | Composite / Polymer |
| Height | : | 35 in |
| Liquid Line Size | : | 3/8 in |
| Model Number | : | RCFZ |
| Number of Rows | : | 3 |
| Product Family | : | Endeavor |
| Product Weight | : | 76 lbs |
| Refrigerant Type | : | R-410A |
| Refrigeration Control Type | : | EEV |
| Shipping Weight | : | 86 lbs |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 2.0 Ton |
| Width | : | 21 in |

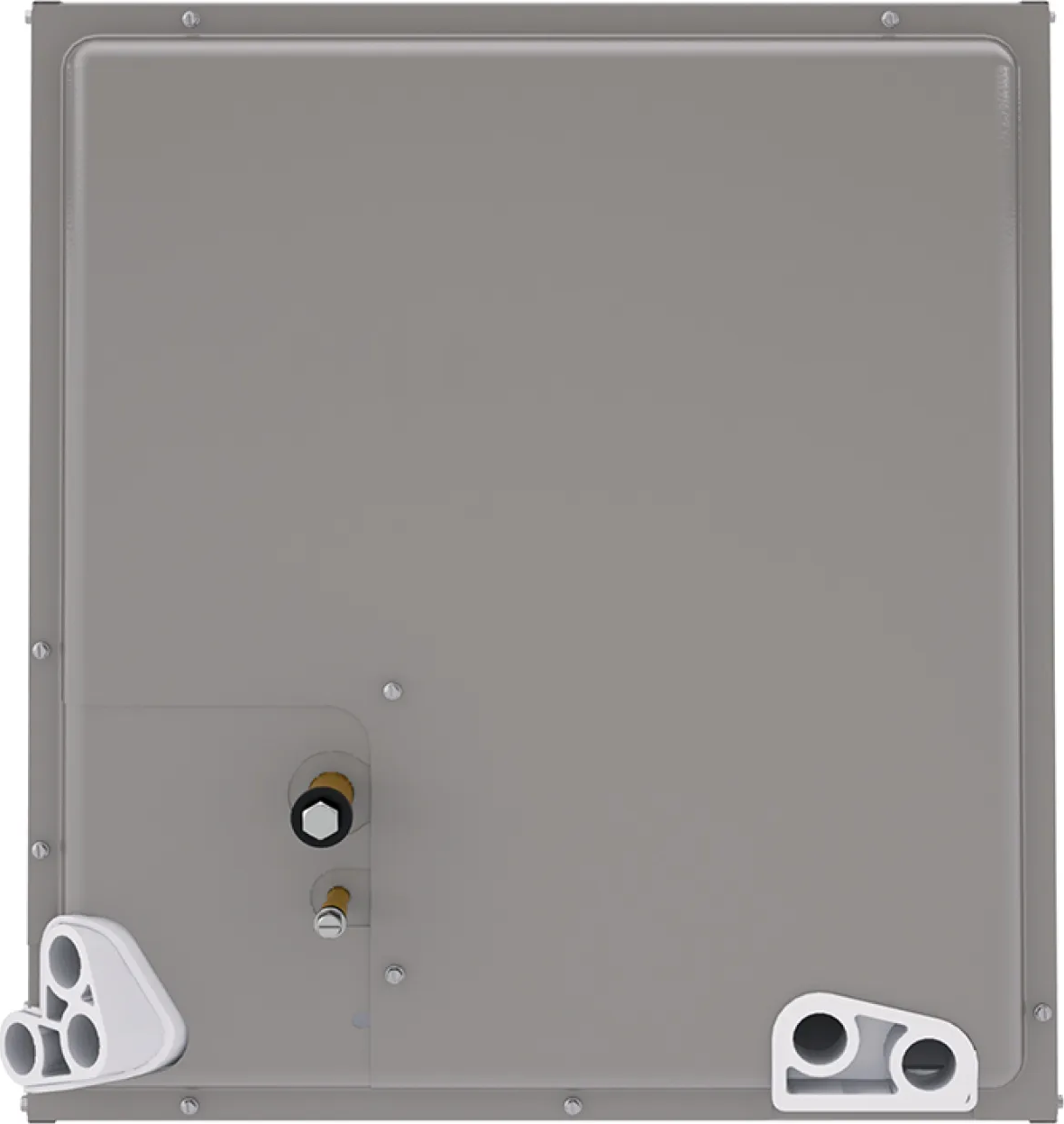

The Rheem Endeavor Line cased coil is designed for multi-position applications, offering the flexibility for upflow, downflow, and horizontal configurations. It is engineered for use with compatible Rheem outdoor units to create a complete, high-efficiency system.Constructed with all-aluminum tubing and fins, this coil ensures durability and reliable performance. The unit's unique drain pan design improves condensate removal, and the painted cabinet provides a clean, professional installation.
- Durable Construction:Built with aluminum fins bonded to internally grooved aluminum tubing for efficient heat transfer.
- Installation Versatility:Features bi-directional airflow, allowing for upflow, downflow, and horizontal installations without internal component modifications.
- Condensate Management:Equipped with a corrosion-free, heat-resistant thermal-set drain pan that includes two 3/4 in. N.P.T. drain connections for flexible connection.
- High-Efficiency Metering:Includes a factory-installed Electronic Expansion Valve (EEV) for precise refrigerant control.
- Factory Tested:All coils are extensively leak-tested at the factory to ensure reliability upon installation.
- Service-Friendly Design:Features Chatleff-style connections at the EEV for simplified service and maintenance.
