| Compatible Models | : | R802V~R96V~R97V~R98V~RHMV~RA20~RA17~RP20~RP17~RETST700SYS~RECTL700ZON |
| Depth | : | 2.05 in |
| For Use With | : | HVAC Systems |
| Function Type | : | Zoning Panel |
| Heat Pump Compatible | : | Yes |
| Height | : | 4.1 in |
| Installation / Mounting Type | : | Surface Mount |
| Maximum Dampers Per Zone | : | 5 |
| Number of Zones | : | 6 |
| Operating Temperature Rating | : | -20-160 F |
| Package Quantity | : | 1 |
| Product Family | : | EcoNet |
| Product Weight | : | 0.6 lbs |
| Terminal Designations | : | R~C~E1~E2 |
| VA Rating | : | 40 VA |
| Voltage Rating | : | 24 V |
| Wi-Fi/Smart Home Enabled | : | Yes |
| Width | : | 5.6 in |

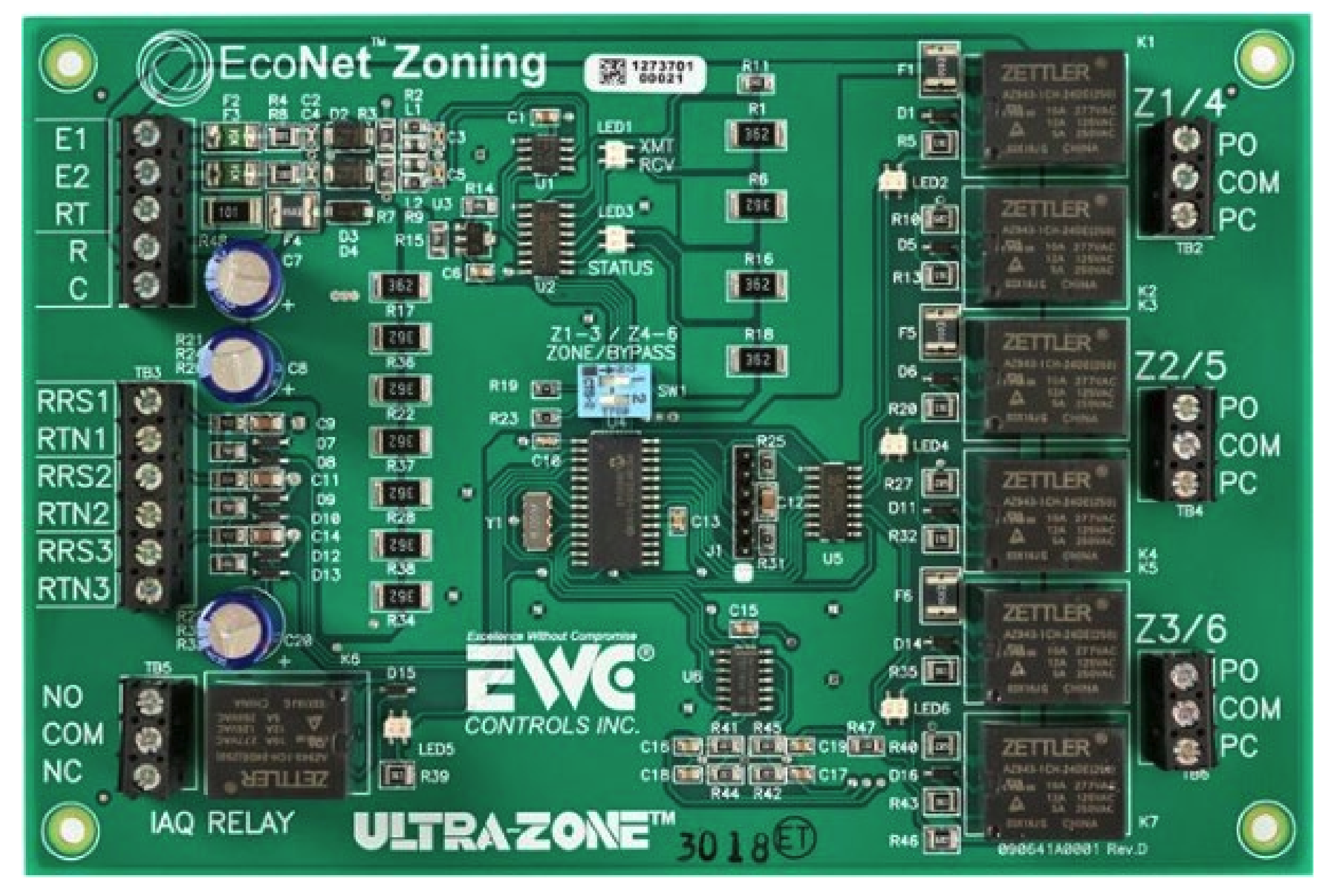

The Rheem® EcoNet Zone Control Panel serves as the central communication hub for a multi-zone HVAC system. It receives signals from the EcoNet Smart Thermostat to precisely modulate dampers, directing conditioned air only where it's needed for optimized comfort and efficiency.This panel is the core component for setting up a zoned system with compatible Rheem® communicating equipment, allowing for customized temperature control throughout a home or building.
