| Air Flow Direction | : | Upflow~Downflow~Horizontal~Multi-Position |
| BTU Cooling Rating (Custom) | : | 48,000 BTU/h |
| BTU Cooling Rating | : | 48,000 BTU/h |
| CFM Airflow (Custom) | : | 1,400~1,500~1,600 CFM |
| CFM Airflow | : | 1,400-1,600 CFM |
| Depth | : | 21.688 in |
| Drain Pan Material | : | Composite / Polymer |
| Filter Size | : | 20 x 20 in |
| Height | : | 50.5 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 15 A |
| Model Number | : | RH1T |
| Motor Type | : | Constant Torque ECM |
| Number of Speeds | : | 5 |
| Phase | : | 1 ph |
| Product Family | : | RH1T Series |
| Product Weight | : | 128 lbs |
| Refrigerant Type | : | R-410A |
| Refrigeration Control Type | : | TXV |
| Shipping Weight | : | 144 lbs |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 4.0 Ton |
| Voltage Rating | : | 208/240 V |
| Width | : | 21 in |

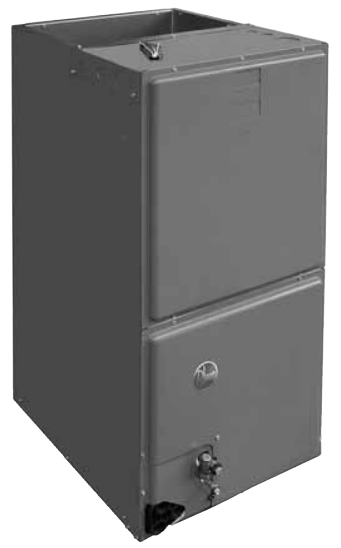

This RH1T Series air handler is a single-stage unit engineered for dependable performance and enhanced efficiency in residential applications. Equipped with a constant torque ECM motor, it pairs with compatible outdoor units to boost overall system SEER ratings, providing consistent airflow for reliable home comfort.Designed for versatility, this air handler supports upflow, downflow, and horizontal configurations to accommodate various installation requirements. The rugged, insulated steel cabinet ensures quiet operation, while the factory-installed thermostatic expansion valve (TXV) provides precise refrigerant control for both air conditioning and heat pump systems.
- Efficient Motor:Features a constant torque ECM motor that enhances SEER performance when paired with compatible outdoor units.
- Installation Flexibility:Offers a versatile 4-way convertible design for upflow, downflow, horizontal left, and horizontal right applications.
- Durable Cabinet:Constructed with a rugged, pre-painted steel cabinet and 1-inch foil-faced insulation for excellent sound and thermal performance.
- Aluminum Coil:Equipped with a factory-installed evaporator coil constructed of aluminum fins bonded to internally grooved aluminum tubing for efficient heat transfer.
- Service-Friendly Design:A slide-out blower housing allows for convenient access to the motor and controls, simplifying service and maintenance.
- Low Air Leakage:Engineered for cabinet air leakage of less than 2.0% at 1.0 inch H2
- O, meeting ASHRAE Standard 193 to improve system efficiency.
