| Air Flow Direction | : | Upflow~Downflow~Horizontal~Multi-Position |
| BTU Cooling Rating (Custom) | : | 60,000 BTU/h |
| BTU Cooling Rating | : | 60,000 BTU/h |
| CFM Airflow (Custom) | : | 1,800 CFM |
| CFM Airflow | : | 1,800 CFM |
| Depth | : | 21.688 in |
| Drain Pan Material | : | Composite / Polymer |
| Filter Size | : | 20 x 25 in |
| Height | : | 55.5 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 15 A |
| Model Number | : | RH1T |
| Motor Type | : | Constant Torque ECM |
| Number of Speeds | : | 5 |
| Phase | : | 1 ph |
| Product Family | : | RH1T Series |
| Product Weight | : | 159 lbs |
| Refrigerant Type | : | R-410A |
| Refrigeration Control Type | : | TXV |
| Shipping Weight | : | 176 lbs |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 5.0 Ton |
| Voltage Rating | : | 208/240 V |
| Width | : | 24.5 in |

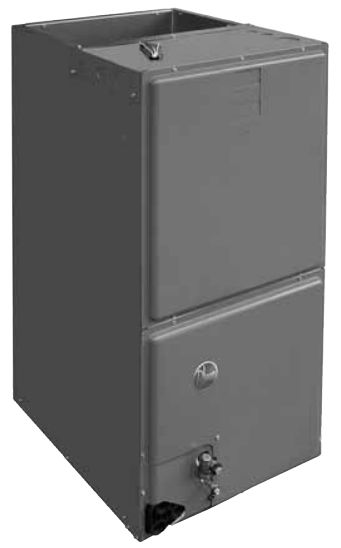

The Rheem RH1T Series air handler is a versatile and reliable solution for residential heating and cooling systems. Its multi-position design supports upflow, downflow, and horizontal configurations, offering flexibility for new construction or retrofit projects.This unit features a factory-installed TXV and an all-aluminum evaporator coil for efficient performance. The rugged, pre-painted steel cabinet is fully insulated with 1-inch foil-faced insulation to ensure quiet operation and minimize thermal loss, making it a durable choice for long-term comfort.
- Efficient Motor:Equipped with a Constant Torque (ECM) motor to enhance SEER performance when paired with compatible outdoor units.
- Installation Versatility:Offers a 4-way convertible design for upflow, downflow, horizontal left, and horizontal right applications.
- Service-Friendly Design:A slide-out blower housing and front-facing connections for refrigerant and drains simplify maintenance and service.
- Low Air Leakage:The cabinet is designed for air leakage of less than 2.0% at 1.0-inch H2
- O, meeting ASHRAE 193 standards for efficiency.
- Durable Drainage:Includes a molded polymer drain pan that resists corrosion for long-lasting, reliable condensate management.
