| Air Flow Direction | : | Upflow~Downflow~Horizontal~Multi-Position |
| BTU Cooling Rating (Custom) | : | 60,000 BTU/h |
| BTU Cooling Rating | : | 60,000 BTU/h |
| CFM Airflow (Custom) | : | 1,600~1,700~1,800 CFM |
| CFM Airflow | : | 1,600-1,725 CFM |
| Depth | : | 21.688 in |
| Drain Pan Material | : | Composite / Polymer |
| Filter Size | : | 20 x 20 in |
| Height | : | 57 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 15 A |
| Model Number | : | RH2V |
| Motor Type | : | ECM |
| Number of Speeds | : | Variable |
| Phase | : | 1 ph |
| Product Family | : | RH2V Series |
| Product Weight | : | 141 lbs |
| Refrigerant Type | : | R-410A |
| Refrigeration Control Type | : | TXV |
| Shipping Weight | : | 153 lbs |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 5.0 Ton |
| Voltage Rating | : | 208/240 V |
| Width | : | 21 in |

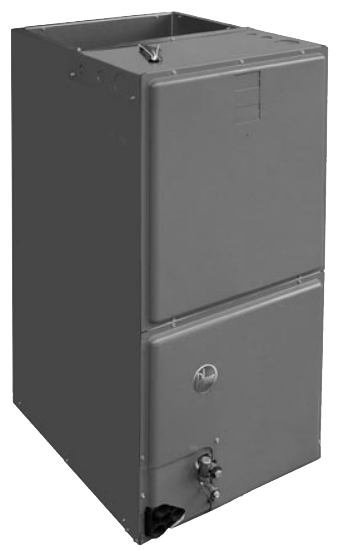

The Rheem RH2V Series is a 5-ton, 2-stage air handler designed to deliver reliable and efficient performance. It features an energy-efficient ECM motor that provides variable-speed airflow for consistent temperature control and quiet operation. With its versatile 4-way convertible design, this unit can be installed in upflow, downflow, or horizontal configurations, offering flexibility for various residential applications.Built for durability and serviceability, the air handler is constructed with a sturdy, insulated steel cabinet that reduces noise and improves thermal performance. It is also EcoNet enabled, providing advanced system control and communication capabilities when integrated into a complete Rheem communicating system.
- Eco
- Net Enabled:Allows for direct communication with the Rheem Eco
- Net Smart Home System for integrated control and diagnostics.
- Quiet ECM Motor:The variable-speed ECM motor slowly ramps up to reduce operating noise and can enhance the SEER rating of the paired outdoor unit.
- Customizable Airflow:Dip switch settings allow for precise, field-selectable airflow adjustments to match specific application requirements.
- Superior Humidity Control:An on-demand dehumidification terminal adjusts airflow to help manage indoor humidity levels for improved comfort.
- Durable Coil Construction:The factory-installed evaporator coil is constructed of aluminum fins bonded to internally grooved aluminum tubing.
- Service-Friendly Design:Features a slide-out blower housing with integrated controls for convenient access during maintenance and service calls.
