| Air Flow Direction | : | Upflow~Downflow~Horizontal~Multi-Position |
| BTU Cooling Rating (Custom) | : | 24,000 BTU/h |
| BTU Cooling Rating | : | 24,000 BTU/h |
| CFM Airflow (Custom) | : | 300~400~500~600~700~800~900 CFM |
| CFM Airflow | : | 310-840 CFM |
| Depth | : | 21.688 in |
| Drain Pan Material | : | Composite / Polymer |
| Filter Size | : | 20 x 20 in |
| Height | : | 42.5 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 15 A |
| Model Number | : | RHMV |
| Motor Type | : | Constant CFM / Variable Speed |
| Number of Speeds | : | Variable |
| Phase | : | 1 ph |
| Product Family | : | RHMV Series |
| Product Weight | : | 111 lbs |
| Refrigerant Type | : | R-410A |
| Refrigeration Control Type | : | EEV |
| Shipping Weight | : | 126 lbs |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 2.0 Ton |
| Voltage Rating | : | 208/240 V |
| Width | : | 21 in |

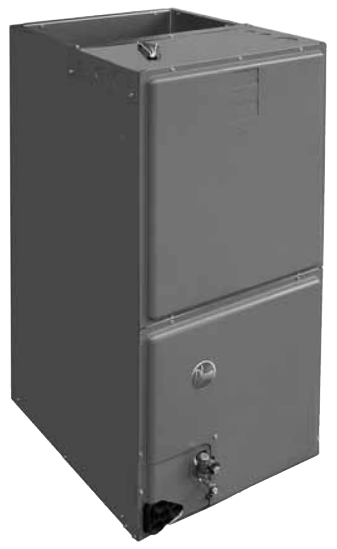

The Rheem RHMV Series is a high-efficiency, modulating air handler designed to integrate seamlessly with EcoNet® enabled smart home systems. It utilizes a constant CFM variable-speed ECM motor and an electronic expansion valve (EEV) to deliver precise comfort control and enhanced SEER ratings when paired with compatible outdoor units.Built for reliability and application flexibility, this unit features a sturdy, insulated steel cabinet that minimizes noise and cabinet air leakage. Its versatile 4-way convertible design allows for upflow, downflow, or horizontal installation, making it a suitable choice for a wide range of residential applications.
- Eco
- Net® Enabled:Connects to the Rheem smart home system, allowing for remote management and service notifications through the Eco
- Net mobile app.
- High-Efficiency Motor:Features a constant CFM variable-speed (ECM) blower motor that delivers enhanced SEER performance and consistent airflow.
- Precise Refrigerant Control:Equipped with an electronic expansion valve (EEV) that intelligently modulates refrigerant flow to optimize system performance and efficiency.
- Flexible Application:A versatile 4-way convertible design supports upflow, downflow, horizontal left, and horizontal right configurations for installation flexibility.
- Durable Construction:The sturdy steel cabinet is lined with 1-inch foil-faced insulation for quiet operation and reduced air leakage.
- Simplified Service:Designed with a slide-out blower housing to provide easy access for maintenance and troubleshooting.
