| Air Flow Direction | : | Upflow~Downflow~Horizontal~Multi-Position |
| BTU Cooling Rating (Custom) | : | 24,000 BTU/h |
| BTU Cooling Rating | : | 24,000 BTU/h |
| CFM Airflow (Custom) | : | 800 CFM |
| CFM Airflow | : | 805 CFM |
| Depth | : | 21.688 in |
| Drain Pan Material | : | Composite / Polymer |
| Filter Size | : | 20 x 20 in |
| Height | : | 42.5 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 15 A |
| Model Number | : | RHMV |
| Motor Type | : | Constant CFM / Variable Speed |
| Number of Speeds | : | Variable |
| Phase | : | 1 ph |
| Product Family | : | RHMV Series |
| Product Weight | : | 111 lbs |
| Refrigerant Type | : | R-410A |
| Refrigeration Control Type | : | EEV |
| Shipping Weight | : | 126 lbs |
| Sound Level | : | 40 dB(A) |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 2.0 Ton |
| Voltage Rating | : | 208/240 V |
| Width | : | 21 in |

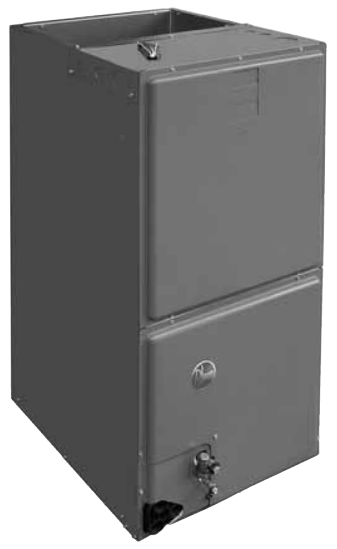

The Rheem RHMV Series is a high-efficiency modulating air handler designed to deliver reliable comfort and enhanced system performance. It utilizes a constant CFM variable-speed ECM motor and an electronic expansion valve (EEV) to help achieve high SEER ratings when paired with compatible outdoor units.This air handler's design prioritizes installation and service flexibility. Its multi-position configuration accommodates various applications, while the rugged steel cabinet features 1-inch foil-faced insulation to minimize heat loss and operational noise.
- Variable Speed Motor:Features a constant CFM variable speed motor (ECM) that enhances SEER performance and provides consistent airflow.
- Installation Flexibility:A versatile 4-way convertible design supports upflow, downflow, horizontal left, and horizontal right applications.
- Durable Construction:Built with an all-aluminum evaporator coil and a sturdy, pre-painted steel cabinet with 1-inch foil-faced insulation for sound and thermal performance.
- Service-Friendly Design:The blower housing, complete with controls and motor, slides out for convenient access during maintenance and service.
- Corrosion-Resistant Pan:Includes a molded polymer drain pan designed to resist corrosion and ensure reliable condensate management.
- Low Air Leakage:The cabinet is designed for less than 2.0% air leakage at 1.0 inch H2
- O, meeting ASHRAE Standard 193 for improved efficiency.
