| Air Flow Direction | : | Upflow~Downflow~Horizontal~Multi-Position |
| BTU Cooling Rating (Custom) | : | 30,000 BTU/h |
| BTU Cooling Rating | : | 30,000 BTU/h |
| CFM Airflow (Custom) | : | 900 CFM |
| CFM Airflow | : | 890 CFM |
| Depth | : | 21.688 in |
| Drain Pan Material | : | Composite / Polymer |
| Filter Size | : | 20 x 20 in |
| Height | : | 42.5 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 15 A |
| Model Number | : | RHMV |
| Motor Type | : | Constant CFM / Variable Speed |
| Number of Speeds | : | Variable |
| Phase | : | 1 ph |
| Product Family | : | RHMV Series |
| Product Weight | : | 111 lbs |
| Refrigerant Type | : | R-410A |
| Refrigeration Control Type | : | EEV |
| Shipping Weight | : | 126 lbs |
| Sound Level | : | 42 dB(A) |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 2.5 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 21 in |

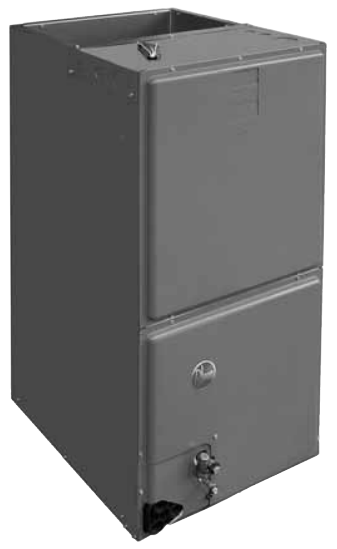

The Rheem RHMV Series air handler is engineered to deliver high-efficiency performance and reliable comfort in residential applications. Its constant CFM variable-speed motor provides consistent airflow to maintain stable temperatures and humidity levels, contributing to higher overall system efficiency.Built with a rugged, insulated steel cabinet, this unit is designed to reduce operational noise and minimize air leakage. The compact design and multi-position configuration provide significant installation flexibility, accommodating upflow, downflow, and horizontal orientations to suit various space requirements.
- Variable-Speed Motor:Features a constant CFM variable-speed ECM motor for enhanced SEER performance and consistent airflow.
- Flexible Installation:A versatile 4-way convertible design allows for upflow, downflow, horizontal left, and horizontal right applications.
- Durable Cabinet:Constructed with a rugged, pre-painted steel cabinet and 1-inch foil-faced insulation for excellent sound damping and thermal performance.
- Efficient Coil:Equipped with an all-aluminum evaporator coil that is factory-installed and leak-tested to ensure reliability.
- Service-Friendly Design:A slide-out blower housing provides convenient access for maintenance and service procedures.
- Advanced Metering:Utilizes an Electronic Expansion Valve (EEV) for precise refrigerant control and optimized performance.
- Low-Leakage Construction:The cabinet is designed for air leakage of less than 2.0% at 1.0 inch H2
- O, meeting ASHRAE Standard 193.
