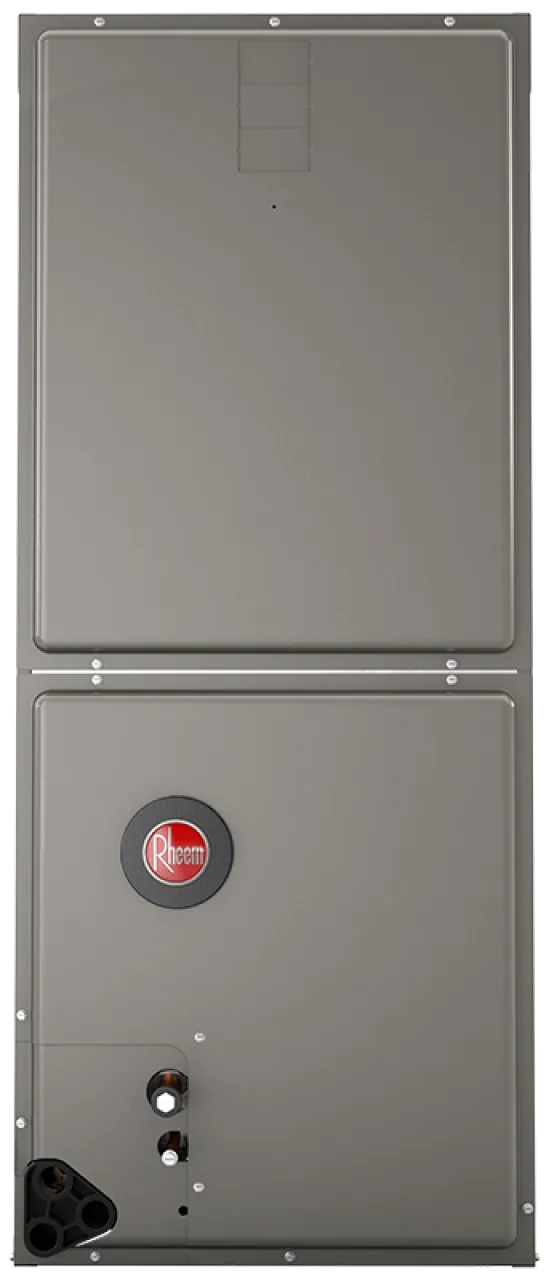

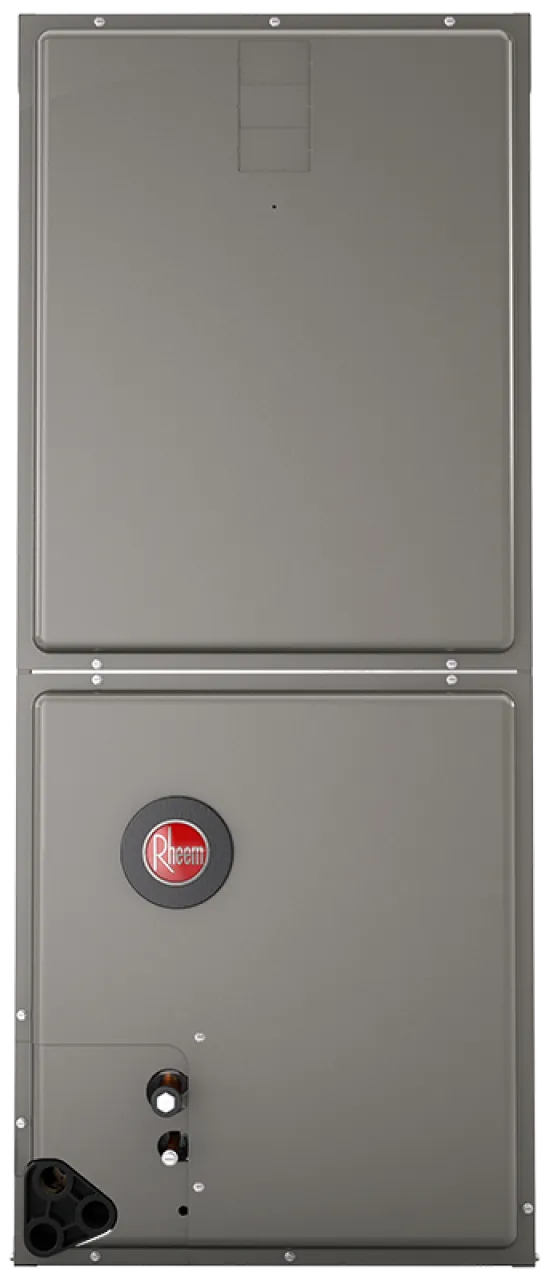

Rheem® Endeavor™ RHMVY6021SEACAJ Air Handler, Tonnage: 5 ton, R-454B Refrigerant, 208/240 V, 1 ph, 2 Stages, 1600 cfm
Rheem® Endeavor™ RHMVY6021SEACAJ Air Handler, Tonnage: 5 ton, R-454B Refrigerant, 208/240 V, 1 ph, 2 Stages, 1600 cfm
Manufacturer: Rheem Manufacturing
Brand: Rheem®
Part #: 307894
MPN: RHMVY6021SEACAJ
CPN:
| Air Flow Direction | : | Downflow, Horizontal, Upflow |
| BTU Cooling Rating | : | 60000 Btu/hr |
| CFM Airflow | : | 1600 cfm |
| Depth | : | 21.69 in |
| Filter Size | : | 20 x 20 in |
| Height | : | 57 in |
| Liquid Line Size | : | 3/8 in |
| Model Number | : | RHMVY |
| Motor Type | : | CFM |
| Nominal Supplemental Electric Heat (kW) | : | 17.58 kW |
| Number of Speeds | : | 2 |
| Number of Stages | : | 2 |
| Phase | : | 1 ph |
| Product Family | : | Endeavor™ |
| Product Weight | : | 140 lb |
| Refrigerant Type | : | R-454B |
| Refrigeration Control Type | : | EEV |
| SEER | : | 18 |
| Shipping Weight | : | 152 lb |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 5 ton |
| Voltage Rating | : | 208/240 V |
| Width | : | 21 in |
Rheem® Air Handler, Tonnage: 5 ton, R-454B Refrigerant, Downflow, Horizontal, Upflow Air Flow Direction, 208/240 V, 1 ph Phase, 2 Stages, 60000 Btu/hr Cooling, 21 in Width, 1600 cfm, EEV Refrigeration Control Type, Product Family: Endeavor™, 57 in Height, 21.69 in Depth, 3/8 in Liquid Line, 7/8 in Suction Line, CFM Motor, 17.58 kW Nominal Supplemental Electric Heat, 20 x 20 in Filter, 2 Speed, 18 SEER
- Constant CFM Motor - Truly variable speed technology allows for ultimate humidity control, quieter sound levels and contributes to year-round energy savings
- Quietest Operation1 - Provided by Modulating operation and truly variable speed airflow technology and sturdy cabinet construction with 1.0 inch of foil faced insulation for some of the quietest sound characteristics
- PlusOne® Diagnostics - With the Rheem® Contractor and EcoNet® Apps, built-in EcoNet and Bluetooth®2 technology makes monitoring, troubleshooting and repairing the product easier than ever before
- Dip Switch Free Installation Commissioning via Bluetooth Technology - Seamless final install step without DIP switch configuration using the Rheem Contractor App
- EcoNet Enabled Air Handler - The latest in sensor technology and the EcoNet monitoring system provides a new level of protection, control and energy savings
- Aluminum Indoor Coil Design - Are constructed of aluminum fins bonded to internally grooved aluminum tubing and are more corrosion resistant
- Versatile 4-Way Convertible Compact Design - Allows for upflow, downflow, horizontal left and horizontal right applications, even in the smallest of spaces
- Rugged Steel, Compact Cabinet Construction - Designed for added strength and versatility
- Field-installed Auxiliary Heater Kits - Provide exact heat for indoor comfort and include circuit breakers which meet UL and cUL requirements for service disconnect
- Less than 2% Cabinet Air Leakage at 1-inch H2O - When tested in accordance with ASHRAE Standard 193
- PlusOne Refrigerant Detection System™4 - An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation if excess refrigerant is detected
