| Air Flow Direction | : | Upflow~Downflow~Horizontal~Multi-Position |
| BTU Cooling Rating (Custom) | : | 60,000 BTU/h |
| BTU Cooling Rating | : | 60,000 BTU/h |
| CFM Airflow (Custom) | : | 500~600~700~800~900~1,000~1,100~1,200~1,300~1,400~1,500~1,600~1,700 CFM |
| CFM Airflow | : | 580-1,700 CFM |
| Depth | : | 21.69 in |
| Drain Pan Material | : | Composite / Polymer |
| Filter Size | : | 20 x 23 in |
| Height | : | 55.5 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 15 A |
| Model Number | : | RHMVZ |
| Motor Type | : | Constant CFM / Variable Speed |
| Number of Speeds | : | Variable |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line |
| Product Weight | : | 159 lbs |
| Refrigerant Type | : | R-410A |
| Refrigeration Control Type | : | EEV |
| Shipping Weight | : | 176 lbs |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 5.0 Ton |
| Voltage Rating | : | 208/240 V |
| Width | : | 24.5 in |

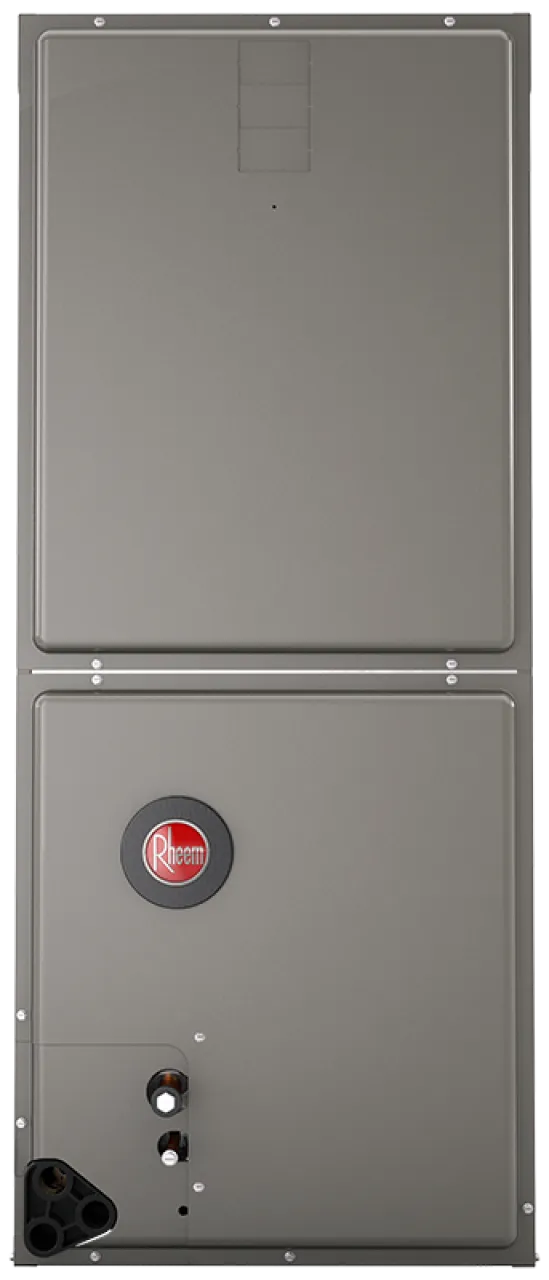

The Rheem Endeavor Line RHMVZ Air Handler delivers premium comfort and efficiency through its modulating operation and constant CFM variable-speed motor, providing precise temperature control and superior humidity management. Built with a rugged steel cabinet and a corrosion-resistant all-aluminum indoor coil, this unit is designed for long-lasting reliability. The 4-way multi-positional configuration offers installation flexibility, while integrated EcoNet® and Bluetooth® technology simplify commissioning, diagnostics, and system monitoring.
- Constant CFM Motor:Its truly variable speed technology provides ultimate humidity control, quiet sound levels, and contributes to year-round energy savings.
- Smart Diagnostics:Built-in Eco
- Net® and Bluetooth® technology enable simple, dip-switch-free commissioning and advanced troubleshooting through the Rheem Contractor App.
- Eco
- Net® Enabled:Connects with the Eco
- Net® Smart Thermostat, allowing for on-the-go system control and alerts for enhanced protection and energy savings.
- Corrosion-Resistant Coil:The indoor coil is constructed entirely of aluminum, with fins bonded to internally grooved tubing for improved durability and performance.
- Flexible Installation:Its versatile 4-way convertible design accommodates upflow, downflow, horizontal left, and horizontal right applications.
- Quiet Performance:The combination of modulating operation, a variable-speed motor, and a sturdy cabinet with 1-inch foil-faced insulation ensures quiet operation.
