| BTU Cooling Rating | : | 18,000 Btu/hr |
| BTU Heating Rating | : | 18,000 Btu/hr |
| Coefficient of Performance (COP) | : | 3.6 |
| Compressor Type | : | Scroll |
| Depth | : | 29.75 in |
| EER2 | : | 8.0~9.0~10.0~11.0 |
| Energy Star Certified | : | No |
| HSPF2 | : | 6.0~7.0~8.0 |
| Height | : | 25.00 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 20 A |
| Minimum Circuit Ampacity (MCA) | : | 11 A |
| Model Number | : | RP14AZ |
| Number of Stages | : | Two |
| Packaged Depth | : | 33.25 in |
| Packaged Height | : | 27.90 in |
| Packaged Width | : | 33.25 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line Classic |
| Product Weight | : | 152 lb |
| Refrigerant Type | : | R-410A |
| SEER2 | : | 12.0~13.0~14.0~15.0 |
| Sound Level | : | 73 dBA |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 1.5 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 29.75 in |

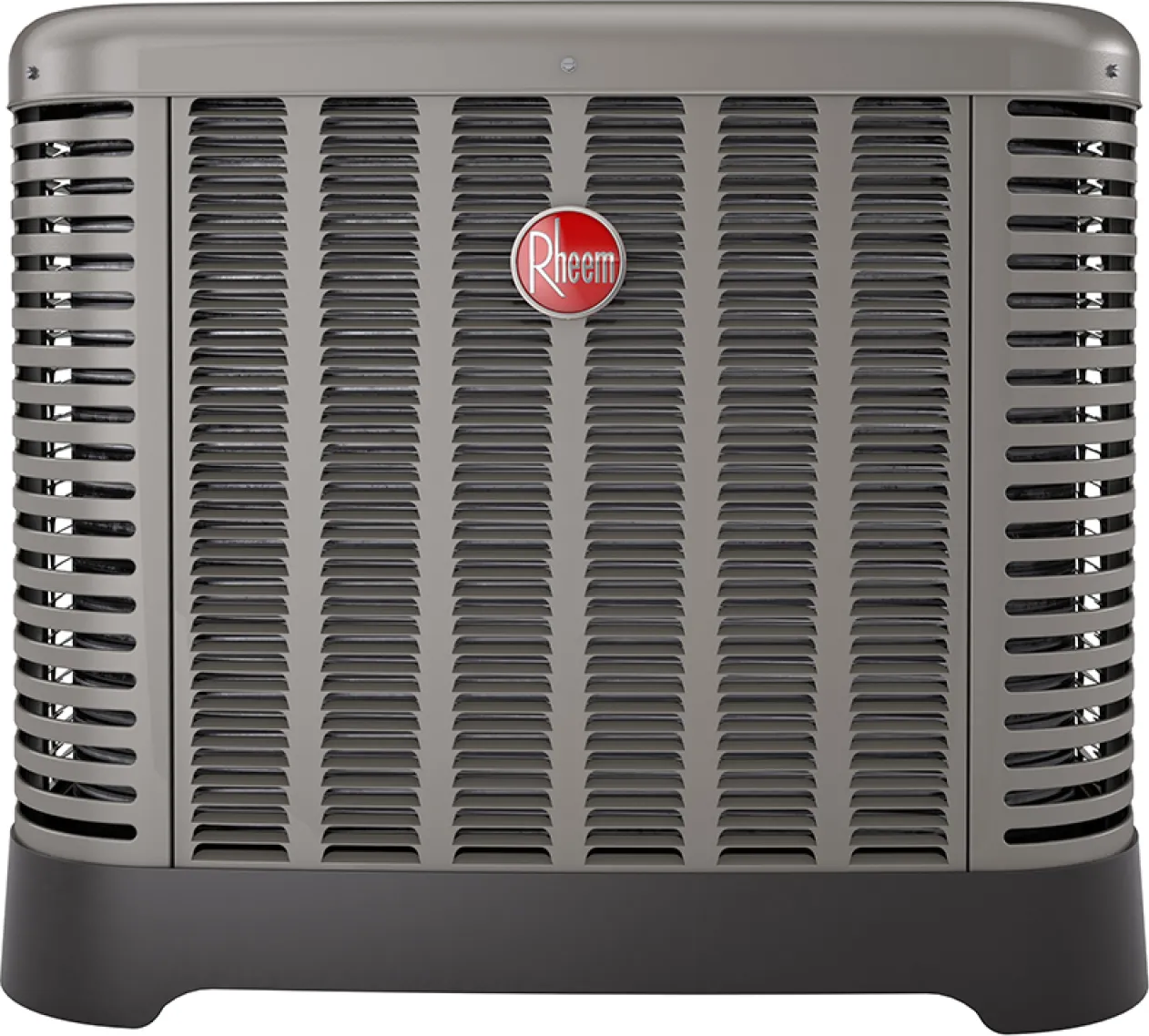

The Rheem Endeavor Line Classic RP14AZ heat pump condenser offers dependable, high-efficiency performance for residential heating and cooling. It meets ENERGY STAR® certification requirements, delivering up to 15.2 SEER2 efficiency to help lower utility costs.This unit is engineered for long-term reliability and quiet operation. Its thoughtful design simplifies installation and service for technicians, making it a practical choice for both new construction and system replacements. The system is designed for use with R-410A refrigerant.
- Two-Stage Operation:A two-stage scroll compressor provides precise temperature control, improved humidity management, and greater efficiency compared to single-stage units.
- Service-Friendly Design:Plus
- One® features, including an expanded valve space and triple service access, provide a large working area for faster, easier installation and maintenance.
- Quiet Performance:Swept Wing Fan Technology is engineered to improve unit acoustics and ensure quiet operation.
- Durable Construction:A corrosion-resistant composite base pan and powder-coated paint system protect internal components and maintain the cabinet's appearance.
- Enhanced Reliability:The inverted reversing valve allows for faster, gravity-assisted heat transfer while reducing stress on joints for increased service life.
