| BTU Cooling Rating (Custom) | : | 22,800 BTU/h |
| BTU Cooling Rating | : | 24,000 BTU/h |
| BTU Heating Rating (Custom) | : | 22,600 BTU/h |
| BTU Heating Rating | : | 24,000 BTU/h |
| Coefficient of Performance (COP) | : | 3.6 |
| Compressor Type | : | Scroll |
| Depth | : | 29.75 in |
| EER2 Range | : | 8.5-12.0 |
| EER2 | : | 8.0~9.0~10.0~11.0~12.0 |
| ENERGY STAR Certified | : | Yes |
| HSPF2 Range | : | 6.8-7.8 |
| HSPF2 | : | 6.0~7.0 |
| Height | : | 25 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 25 A |
| Minimum Circuit Ampacity (MCA) | : | 16 A |
| Model Number | : | RP15AY |
| Number of Stages | : | Two-Stage |
| Packaged Depth | : | 33.25 in |
| Packaged Height | : | 27.9 in |
| Packaged Width | : | 33.25 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line Classic Plus |
| Product Weight | : | 150 lbs |
| Refrigerant Type | : | R-454B |
| SEER2 Range | : | 12.0-16.0 |
| SEER2 | : | 12.0~13.0~14.0~15.0~16.0 |
| Shipping Weight | : | 157 lbs |
| Sound Level | : | 73 dB(A) |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 2.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 29.75 in |

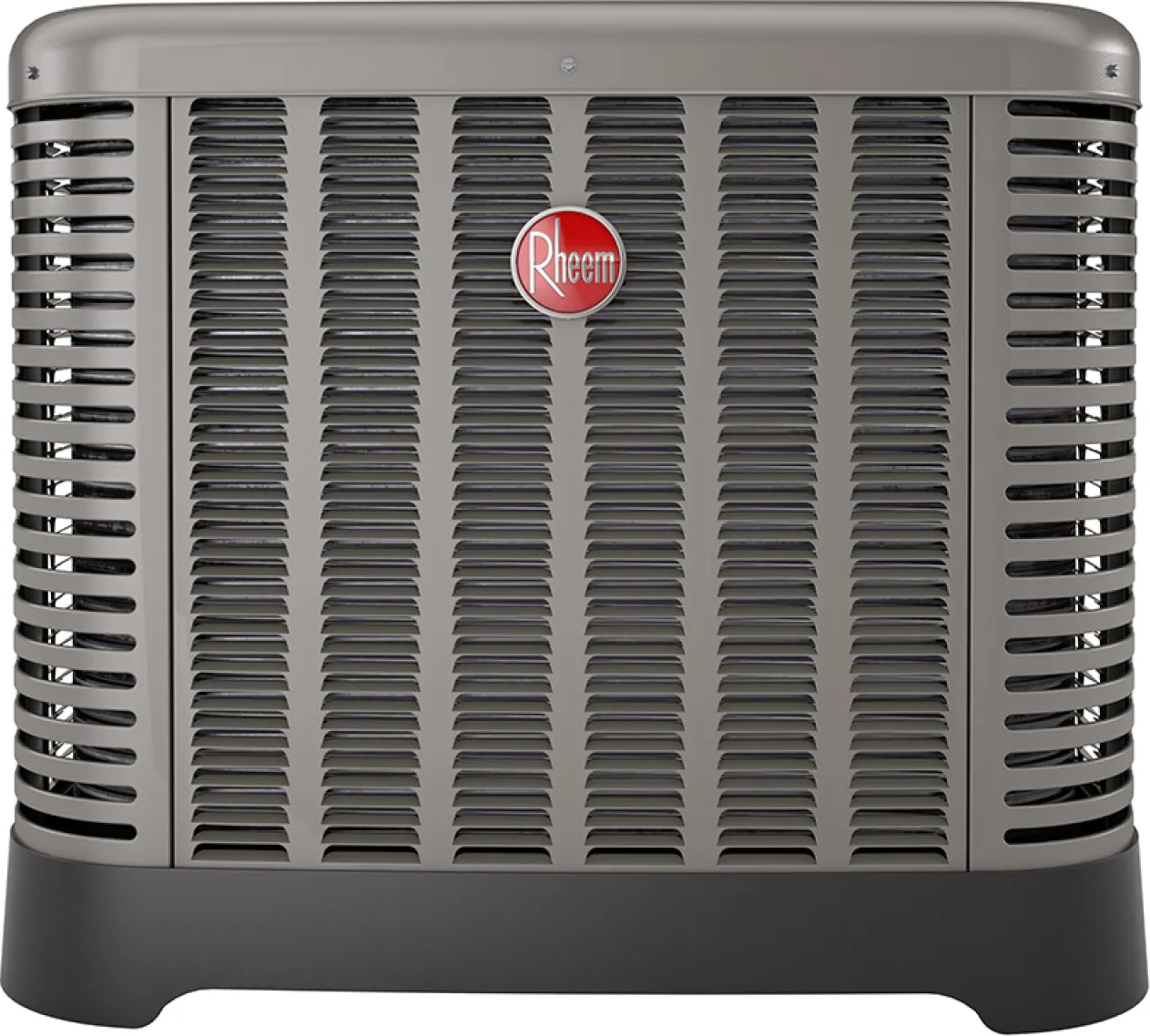

The Rheem Endeavor Line Classic Plus RP15AY is a two-stage heat pump condenser engineered for efficient and reliable residential comfort. Its two-stage scroll compressor provides precise temperature and humidity control by running at a lower speed for most of the day, ensuring quiet operation and energy savings, while reserving higher-speed operation for times of peak demand.Built for sustainability and longevity, this unit utilizes low-GWP R-454B refrigerant to comply with modern environmental standards. The ENERGY STAR certified design is housed in a durable, corrosion-resistant cabinet built to withstand the elements, offering dependable performance and peace of mind.
- Two-Stage Operation:Features a two-stage scroll compressor for precise temperature control, improved humidity management, and higher efficiency compared to single-stage units.
- Enhanced Serviceability:Plus
- One® Triple Service Access and Expanded Valve Space provide ample room for easier and faster maintenance and repairs.
- Refrigerant Detection System:The integrated Plus
- One® system includes an A2
- L sensor and mitigation board to protect the unit by pausing operation if a refrigerant leak is detected.
- Efficient Coil Technology:A 7mm condenser copper coil requires less refrigerant, allowing for a more compact and lighter cabinet design while enhancing system reliability.
- Durable Construction:The cabinet features curved louvered panels, rugged corner posts, and a corrosion-resistant composite base pan for long-lasting protection of internal components.
- Inverted Reversing Valve:Allows for faster heat transfer with gravity-assisted shifting, which reduces stress on joints for increased reliability.
