| BTU Cooling Rating (Custom) | : | 17,100 BTU/h |
| BTU Cooling Rating | : | 18,000 BTU/h |
| BTU Heating Rating (Custom) | : | 17,100 BTU/h |
| BTU Heating Rating | : | 18,000 BTU/h |
| Coefficient of Performance (COP) | : | 3.87 |
| Compressor Type | : | Scroll |
| Depth | : | 29.75 in |
| EER2 Range | : | 8.5-12.0 |
| EER2 | : | 8.0~9.0~10.0~11.0~12.0 |
| ENERGY STAR Certified | : | Yes |
| HSPF2 Range | : | 6.8-8.4 |
| HSPF2 | : | 6.0~7.0~8.0 |
| Height | : | 25 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 15 A |
| Minimum Circuit Ampacity (MCA) | : | 11 A |
| Model Number | : | RP15AZ |
| Number of Stages | : | Two-Stage |
| Packaged Depth | : | 33.25 in |
| Packaged Height | : | 27.9 in |
| Packaged Width | : | 33.25 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line Classic Plus |
| Product Weight | : | 150 lbs |
| Refrigerant Type | : | R-410A |
| SEER2 Range | : | 12.0-17.0 |
| SEER2 | : | 12.0~13.0~14.0~15.0~16.0~17.0 |
| Shipping Weight | : | 157 lbs |
| Sound Level | : | 73 dB(A) |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 1.5 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 29.75 in |

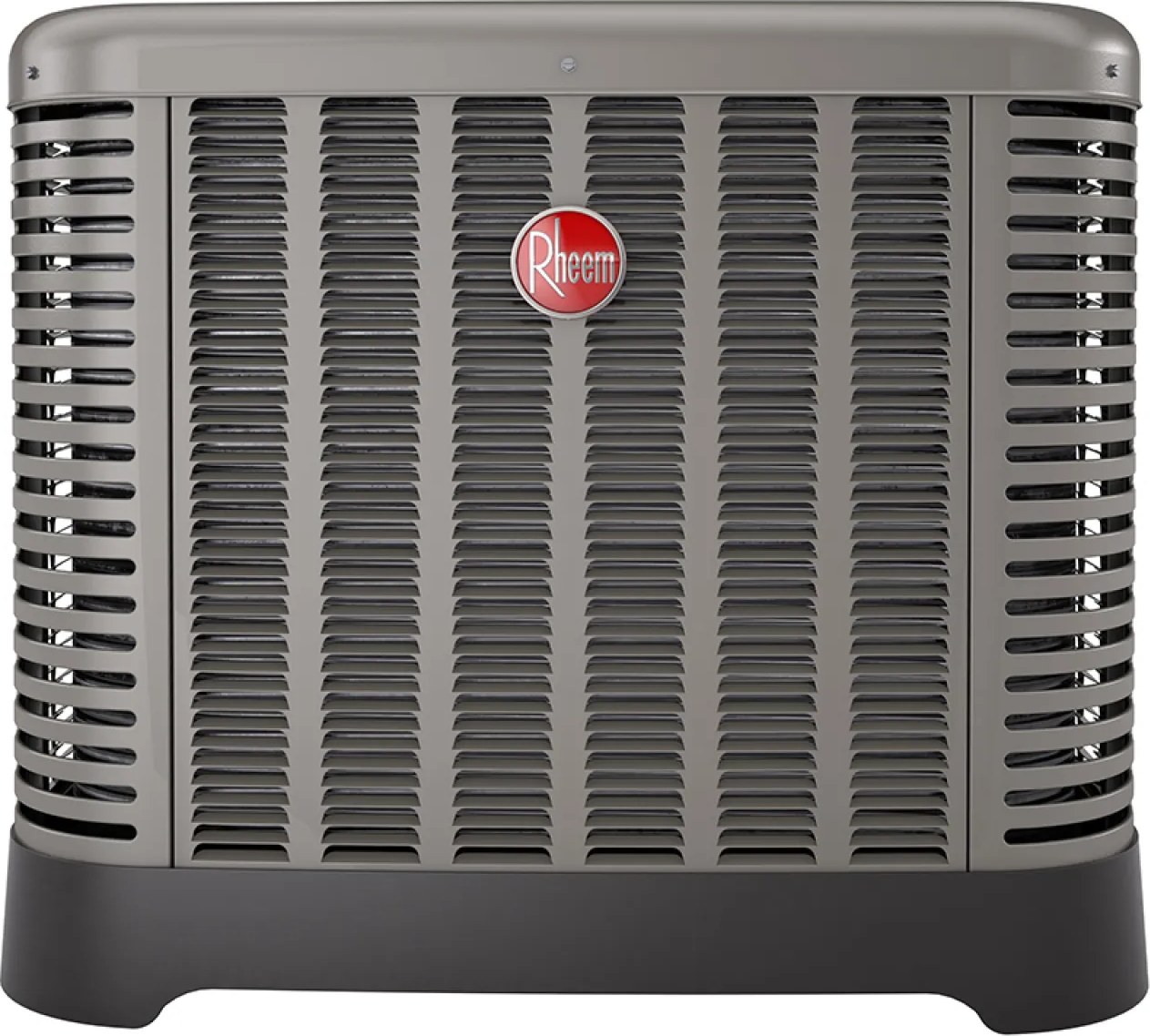

The Rheem Endeavor Line Classic Plus Series RP15AZ heat pump condenser provides dependable, high-efficiency comfort for residential spaces. It delivers precise temperature control and significant energy savings with a SEER2 rating up to 17.0 and is ENERGY STAR certified.This unit combines durable construction with technician-focused design. A robust cabinet protects internal components, while features that allow for expanded service access make installation and maintenance straightforward, ensuring reliable performance season after season.
- Two-Stage Compressor:A two-stage scroll compressor offers high and low speeds for more precise temperature control, improved humidity management, and greater efficiency.
- Simplified Service:Features Plus
- One® Triple Service Access with a 15-inch corner opening and Plus
- One® Expanded Valve Space to provide ample room for easier and faster repairs.
- Enhanced Reliability:An inverted reversing valve uses gravity-assisted shifting to enable faster heat transfer and reduce stress on joints for long-term durability.
- Efficient Coil Design:A 7 mm condenser copper coil requires less refrigerant, resulting in a smaller, lighter unit without compromising performance.
- Durable Construction:Built with curved louvered panels, rugged corner posts, a corrosion-resistant composite base pan, and a powder-coat paint system for lasting protection.
- Quiet Operation:Designed with sound-dampening features, including specific refrigerant tubing design and a composite base pan, to keep operational noise levels as low as 73 d
- B(A).
