| BTU Cooling Rating (Custom) | : | 55,000 BTU/h |
| BTU Cooling Rating | : | 54,000 BTU/h |
| BTU Heating Rating (Custom) | : | 54,500 BTU/h |
| BTU Heating Rating | : | 54,000 BTU/h |
| Coefficient of Performance (COP) | : | 3.2 |
| Compressor Type | : | Rotary |
| Depth | : | 35.75 in |
| EER2 Range | : | 9.5-10.0 |
| EER2 | : | 9.0~10.0 |
| ENERGY STAR Certified | : | No |
| HSPF2 Range | : | 7.5-8.1 |
| HSPF2 | : | 7.0~8.0 |
| Height | : | 45 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 50 A |
| Minimum Circuit Ampacity (MCA) | : | 30 A |
| Model Number | : | RP16AZ |
| Number of Stages | : | Inverter |
| Packaged Depth | : | 38.38 in |
| Packaged Height | : | 46.5 in |
| Packaged Width | : | 38.38 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line Classic Plus |
| Product Weight | : | 307 lbs |
| Refrigerant Type | : | R-410A |
| SEER2 Range | : | 14.9-16.0 |
| SEER2 | : | 14.0~15.0~16.0 |
| Shipping Weight | : | 314 lbs |
| Sound Level | : | 71.2 dB(A) |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 5.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 35.75 in |

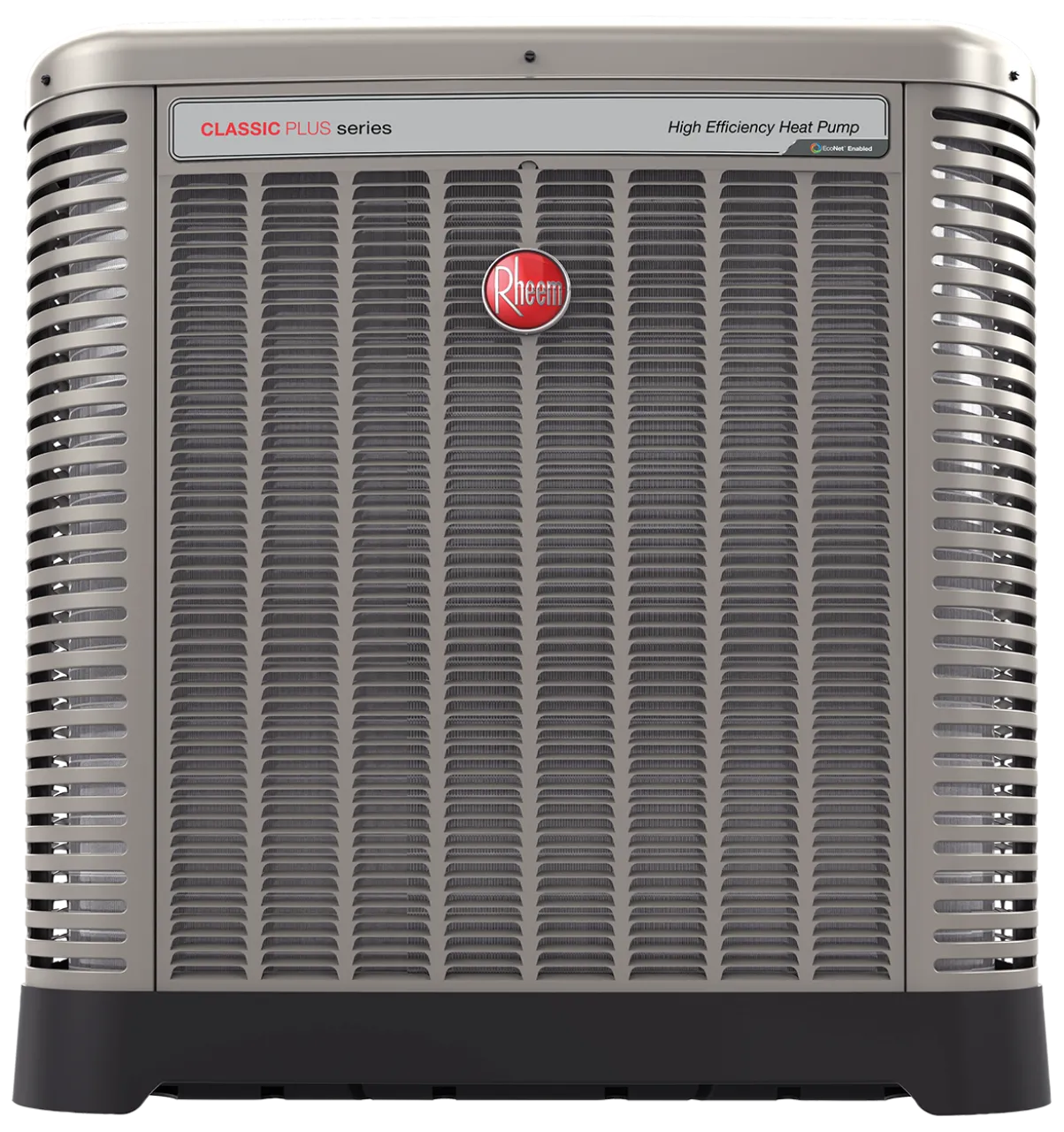

The Rheem Endeavor Line Classic Plus Series RP16AZ is a 5.0-ton inverter heat pump condenser designed to deliver exceptional efficiency and comfort. Its variable-speed compressor intelligently adjusts output to match changing heating and cooling needs, resulting in consistent temperatures and significant energy savings.Built for reliability and ease of service, this unit features a robust cabinet and advanced diagnostic capabilities. With EcoNet® communication and Bluetooth® connectivity, it offers seamless system integration and simplifies setup and maintenance for technicians.
- Smart Diagnostics:Features Plus
- One® Diagnostics with Bluetooth® connectivity, allowing technicians to use the Rheem Contractor App for advanced setup, monitoring, and troubleshooting.
- Variable-Speed Inverter:A twin rotary compressor with an inverter drive operates between 45% and 100% capacity to deliver precise temperature control and superior humidity management.
- Communicating Technology:Eco
- Net® enabled for automatic system configuration and performance optimization when paired with an Eco
- Net® Smart Thermostat.
- Quiet Performance:Swept Wing Fan technology and an included compressor sound blanket work together to ensure quiet, unobtrusive operation.
- Simplified Service:Designed with Triple Service Access and Plus
- One® Expanded Valve Space, providing industry-leading room for easier and faster repairs.
- Durable Construction:Built with a corrosion-resistant composite base pan and a powder-coated cabinet to protect internal components and ensure long-lasting durability.
