| BTU Cooling Rating (Custom) | : | 34,200 BTU/h |
| BTU Cooling Rating | : | 36,000 BTU/h |
| BTU Heating Rating (Custom) | : | 31,000 BTU/h |
| BTU Heating Rating | : | 30,000 BTU/h |
| Coefficient of Performance (COP) | : | 3.76 |
| Compressor Type | : | Scroll |
| Depth | : | 33.75 in |
| EER (Custom) | : | 11.0 |
| EER | : | 11.0-11.5 |
| ENERGY STAR Certified | : | No |
| HSPF (Custom) | : | 8.0 |
| HSPF | : | 8.2-8.5 |
| Height | : | 35 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 35 A |
| Minimum Circuit Ampacity (MCA) | : | 22 A |
| Model Number | : | RP17 |
| Number of Stages | : | Inverter |
| Packaged Depth | : | 36.38 in |
| Packaged Height | : | 36.75 in |
| Packaged Width | : | 36.38 in |
| Phase | : | 1 ph |
| Product Family | : | Classic Plus |
| Product Weight | : | 223 lbs |
| Refrigerant Type | : | R-410A |
| SEER (Custom) | : | 16.0~17.0 |
| SEER | : | 16.0-17.5 |
| Shipping Weight | : | 230 lbs |
| Sound Level | : | 73.5 dB(A) |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 3.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 33.75 in |

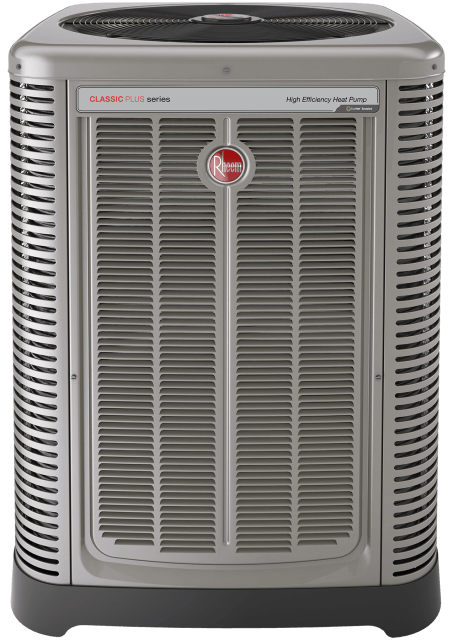

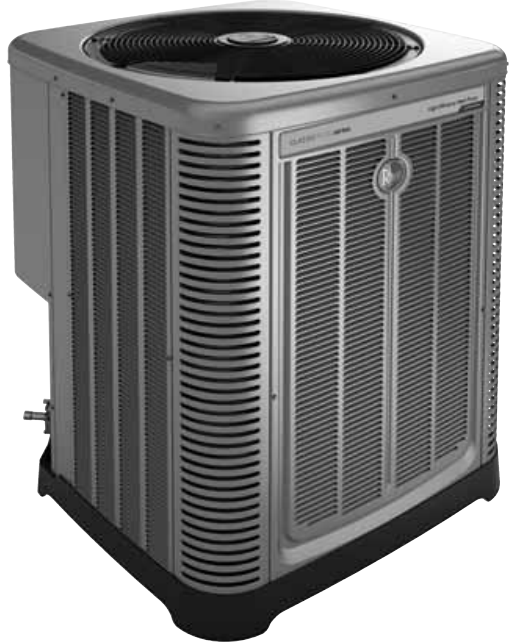

The Rheem Classic Plus Series RP17 is an inverter-driven heat pump engineered to deliver reliable and efficient three-stage heating and cooling. Its Copeland Scroll™ variable-speed compressor dynamically adjusts output to precisely match a home's comfort demands, resulting in significant energy savings and consistent temperature control.This unit is EcoNet® Enabled, allowing for full integration with the EcoNet Smart Home System. When paired with compatible Rheem indoor equipment and the EcoNet Control Center, it provides a complete, connected solution for managing a home's heating and cooling system from a single interface or mobile app.
- Variable-Speed Compressor:Features a Copeland Scroll™ inverter-driven compressor that provides three stages of heating and cooling for enhanced comfort and energy savings.
- Eco
- Net® Enabled:Integrates with the Eco
- Net® Smart Home System for advanced air and water control, system diagnostics, and remote management.
- Service-Friendly Design:Includes Plus
- One® Triple Service Access and a diagnostic service window, providing easier and faster access for repairs and maintenance.
- Durable Construction:Built with a composite base pan that dampens sound, prevents corrosion, and reduces the number of fasteners needed for service.
- Precise Refrigerant Control:Equipped with an Electronic Expansion Valve (EEV) to precisely manage refrigerant flow for optimal performance across varying conditions.
- Quiet Operation:Utilizes a swept-wing fan blade and enhanced mufflers to optimize airflow and reduce operating sound levels.
