| BTU Cooling Rating (Custom) | : | 36,000 BTU/h |
| BTU Cooling Rating | : | 36,000 BTU/h |
| BTU Heating Rating (Custom) | : | 36,000 BTU/h |
| BTU Heating Rating | : | 36,000 BTU/h |
| Compressor Type | : | Scroll |
| Depth | : | 14.56 in |
| EER2 Range | : | 10.7 |
| EER2 | : | 10.0 |
| ENERGY STAR Certified | : | No |
| HSPF2 Range | : | 8.8 |
| HSPF2 | : | 8.0 |
| Height | : | 39.31 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 35 A |
| Minimum Circuit Ampacity (MCA) | : | 39.9 A |
| Model Number | : | RP17 |
| Number of Stages | : | Inverter |
| Packaged Depth | : | 18.813 in |
| Packaged Height | : | 45.75 in |
| Packaged Width | : | 41.875 in |
| Phase | : | 1 ph |
| Product Family | : | Classic Plus |
| Product Weight | : | 198 lbs |
| Refrigerant Type | : | R-410A |
| SEER2 Range | : | 17.1 |
| SEER2 | : | 17.0 |
| Shipping Weight | : | 220 lbs |
| Sound Level | : | 73.5 dB(A) |
| Suction Line Size | : | 5/8 in |
| Tonnage | : | 3.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 38.19 in |

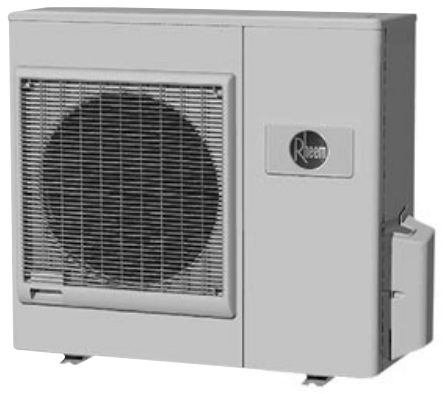

The Rheem Classic Plus Series RP17 is a 3.0 ton side-discharge heat pump designed for applications with space and sound limitations. Its variable-speed inverter technology ensures efficient, year-round performance by precisely matching heating and cooling output to the home's needs.This unit's compact footprint allows for flexible installation, including locations with minimal clearance requirements. As a communicating heat pump, it can be paired with compatible Rheem air handlers to create a highly efficient, integrated system.
- Inverter-Driven Compressor:The variable-speed scroll compressor adjusts capacity to precisely match demand, providing consistent comfort and maximizing energy savings.
- Low-Temperature Heating:Delivers reliable heating performance in outdoor temperatures as low as -5°F.
- Space-Saving Design:Features a compact, side-discharge cabinet and a single-fan design, making it suitable for installations with tight space constraints.
- Quiet Operation:Engineered for reduced operating sound, making it a good choice for applications with noise restrictions.
- Communicating System:Integrates with compatible multi-position air handlers for a fully communicating and optimized home comfort system.
