| BTU Cooling Rating (Custom) | : | 48,000 BTU/h |
| BTU Cooling Rating | : | 48,000 BTU/h |
| BTU Heating Rating (Custom) | : | 46,500 BTU/h |
| BTU Heating Rating | : | 48,000 BTU/h |
| Coefficient of Performance (COP) | : | 3.46 |
| Compressor Type | : | Scroll |
| Depth | : | 35.75 in |
| EER (Custom) | : | 10.0~11.0 |
| EER | : | 10.5-11.0 |
| ENERGY STAR Certified | : | No |
| HSPF (Custom) | : | 8.0~9.0~10.0 |
| HSPF | : | 8.5-10.0 |
| Height | : | 39 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 45 A |
| Minimum Circuit Ampacity (MCA) | : | 28 A |
| Model Number | : | RP17 |
| Number of Stages | : | Inverter |
| Packaged Depth | : | 38.38 in |
| Packaged Height | : | 40.75 in |
| Packaged Width | : | 38.38 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line Classic Plus |
| Product Weight | : | 250 lbs |
| Refrigerant Type | : | R-410A |
| SEER (Custom) | : | 16.0~17.0 |
| SEER | : | 16.5-17.0 |
| Shipping Weight | : | 257 lbs |
| Sound Level | : | 74.3 dB(A) |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 4.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 35.75 in |

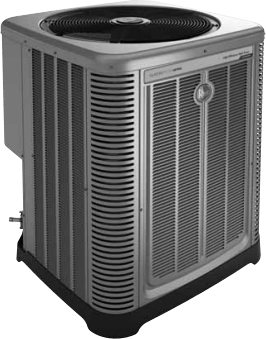

The Rheem Endeavor Line Classic Plus Series RP17 is an inverter-driven, three-stage heat pump designed for highly efficient and reliable performance. It leverages advanced technology to deliver precise temperature and humidity control, making it an excellent choice for applications requiring superior comfort and energy savings.This unit is fully compatible with the EcoNet® Smart Home System, allowing for integrated control of a home's heating, cooling, and water heating equipment. Built for durability and serviceability, the RP17 features a modern cabinet design with a powder-coat paint finish and provides easy access to internal components for maintenance.
- Smart System Integration:Eco
- Net® enabled to provide advanced air and water control for maximum energy savings and ideal comfort when connected to the Eco
- Net Smart Home System.
- Variable-Speed Compressor:Features a Copeland Scroll™ inverter-driven compressor that provides three stages of operation for enhanced comfort and energy savings, with an overdrive feature for heating down to 7°F.
- Technician-Friendly Design:Includes Plus
- One® Triple Service Access and Expanded Valve Space, providing industry-leading corner access to make repairs and maintenance faster and easier.
- Durable & Quiet Base:Built with a composite base pan that dampens sound, captures louver panels, eliminates corrosion, and reduces the number of required fasteners.
- Quiet Operation:An improved tubing design and enhanced mufflers reduce vibration and operational stress, resulting in quieter performance and a longer system life.
- Precise Refrigerant Control:Equipped with an electronic expansion valve (EEV) to precisely control variable refrigerant flow, improving overall system efficiency.
