| BTU Cooling Rating (Custom) | : | 22,800 BTU/h |
| BTU Cooling Rating | : | 24,000 BTU/h |
| BTU Heating Rating (Custom) | : | 24,000 BTU/h |
| BTU Heating Rating | : | 24,000 BTU/h |
| Coefficient of Performance (COP) | : | 3.0 |
| Compressor Type | : | Scroll |
| Depth | : | 36.13 in |
| EER2 Range | : | 12.5 |
| EER2 | : | 12.0 |
| ENERGY STAR Certified | : | Yes |
| HSPF2 Range | : | 8.5 |
| HSPF2 | : | 8.0 |
| Height | : | 45.16 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 30 A |
| Minimum Circuit Ampacity (MCA) | : | 22 A |
| Model Number | : | RP18AZ |
| Number of Stages | : | Inverter |
| Packaged Depth | : | 39.37 in |
| Packaged Height | : | 48.18 in |
| Packaged Width | : | 39.64 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line Prestige |
| Product Weight | : | 278 lbs |
| Refrigerant Type | : | R-410A |
| SEER2 Range | : | 19.0-20.0 |
| SEER2 | : | 19.0~20.0 |
| Shipping Weight | : | 282 lbs |
| Sound Level | : | 69 dB(A) |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 2.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 36.13 in |

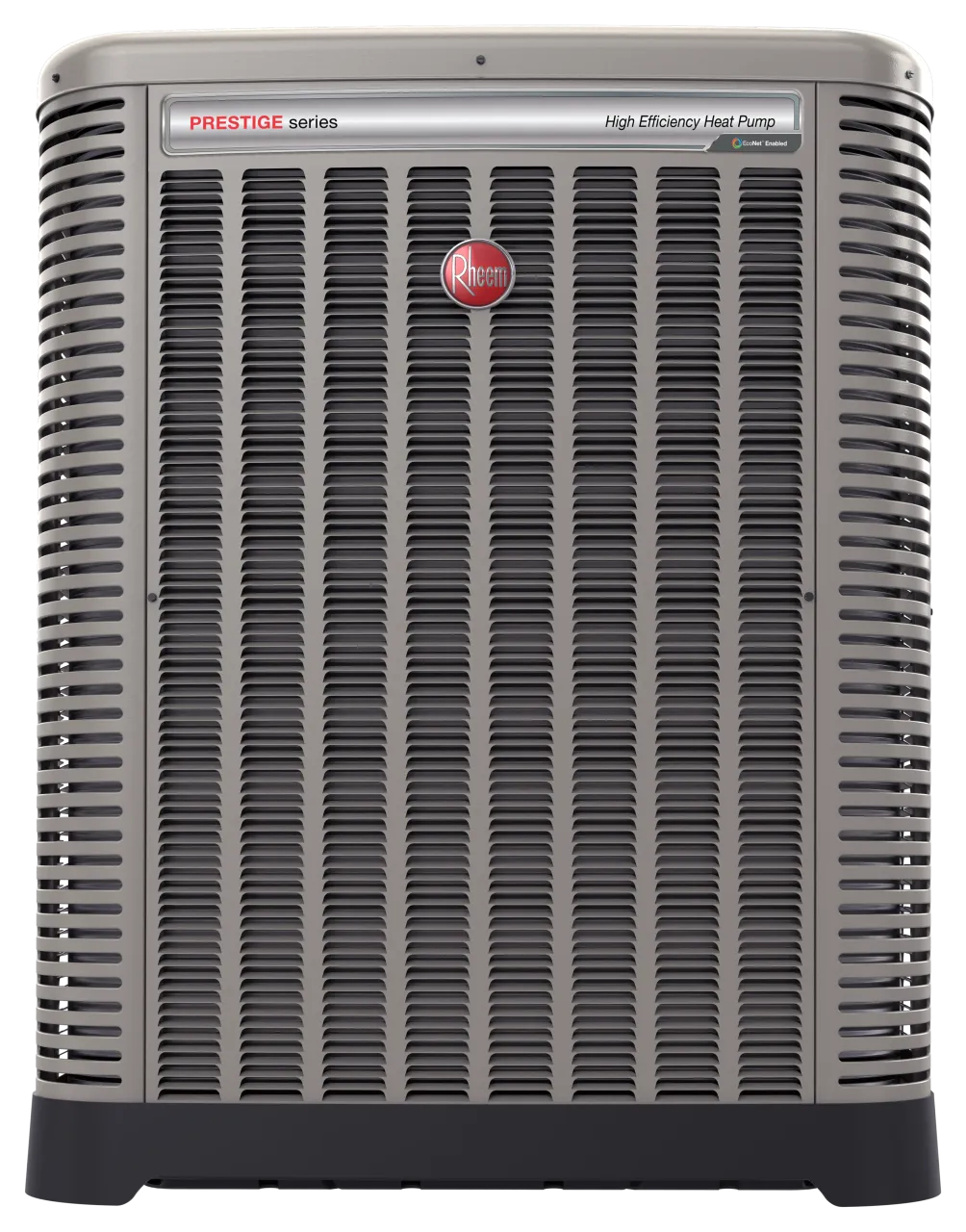

The Rheem Endeavor Line Prestige Series heat pump provides superior comfort and efficiency with its inverter-driven, variable-speed scroll compressor. This ENERGY STAR certified unit delivers precise temperature and humidity control, resulting in significant energy savings and consistent performance in a wide range of conditions.Integrated EcoNet® technology allows for automatic system configuration and optimization, while built-in Bluetooth® connectivity simplifies installation and service. Constructed for durability and quiet operation, it features a rugged cabinet with a composite base pan and sound-dampening components for reliable, long-lasting performance.
- Variable Speed Operation:Features a variable speed scroll compressor that modulates from 40% to 100% capacity and offers an overdrive capability of up to 115% for peak performance.
- Smart Diagnostics:Includes Plus
- One® Diagnostics and Bluetooth® connectivity, allowing for advanced setup, monitoring, and troubleshooting through the Rheem Contractor and Eco
- Net® apps.
- Quiet by Design:Engineered for quiet operation with Swept Wing fan technology, a standard compressor sound blanket, and a sound-dampening composite base pan.
- Durable Construction:Built with a corrosion-resistant composite base pan and a powder-coat paint system to protect against harsh outdoor conditions and maintain curb appeal.
- Enhanced Reliability:Equipped with brushless DC condenser motors (BLDC) that improve reliability and simplify service.
- Comprehensive Warranty:Protected by a 10-year parts and 10-year conditional unit replacement limited warranty upon registration.
