| BTU Cooling Rating (Custom) | : | 34,200 BTU/h |
| BTU Cooling Rating | : | 36,000 BTU/h |
| BTU Heating Rating (Custom) | : | 34,200 BTU/h |
| BTU Heating Rating | : | 36,000 BTU/h |
| Coefficient of Performance (COP) | : | 4.0 |
| Compressor Type | : | Scroll |
| Depth | : | 36.13 in |
| EER2 Range | : | 12.0 |
| EER2 | : | 12.0 |
| ENERGY STAR Certified | : | Yes |
| HSPF2 Range | : | 8.5-10.0 |
| HSPF2 | : | 8.0~9.0~10.0 |
| Height | : | 51.16 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 35 A |
| Minimum Circuit Ampacity (MCA) | : | 20 A |
| Model Number | : | RP19AY |
| Number of Stages | : | Inverter |
| Packaged Depth | : | 39.37 in |
| Packaged Height | : | 53.56 in |
| Packaged Width | : | 39.64 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line Prestige |
| Product Weight | : | 298 lbs |
| Refrigerant Type | : | R-454B |
| SEER2 Range | : | 19.0-21.0 |
| SEER2 | : | 19.0~20.0~21.0 |
| Shipping Weight | : | 306 lbs |
| Sound Level | : | 70 dB(A) |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 3.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 36.13 in |

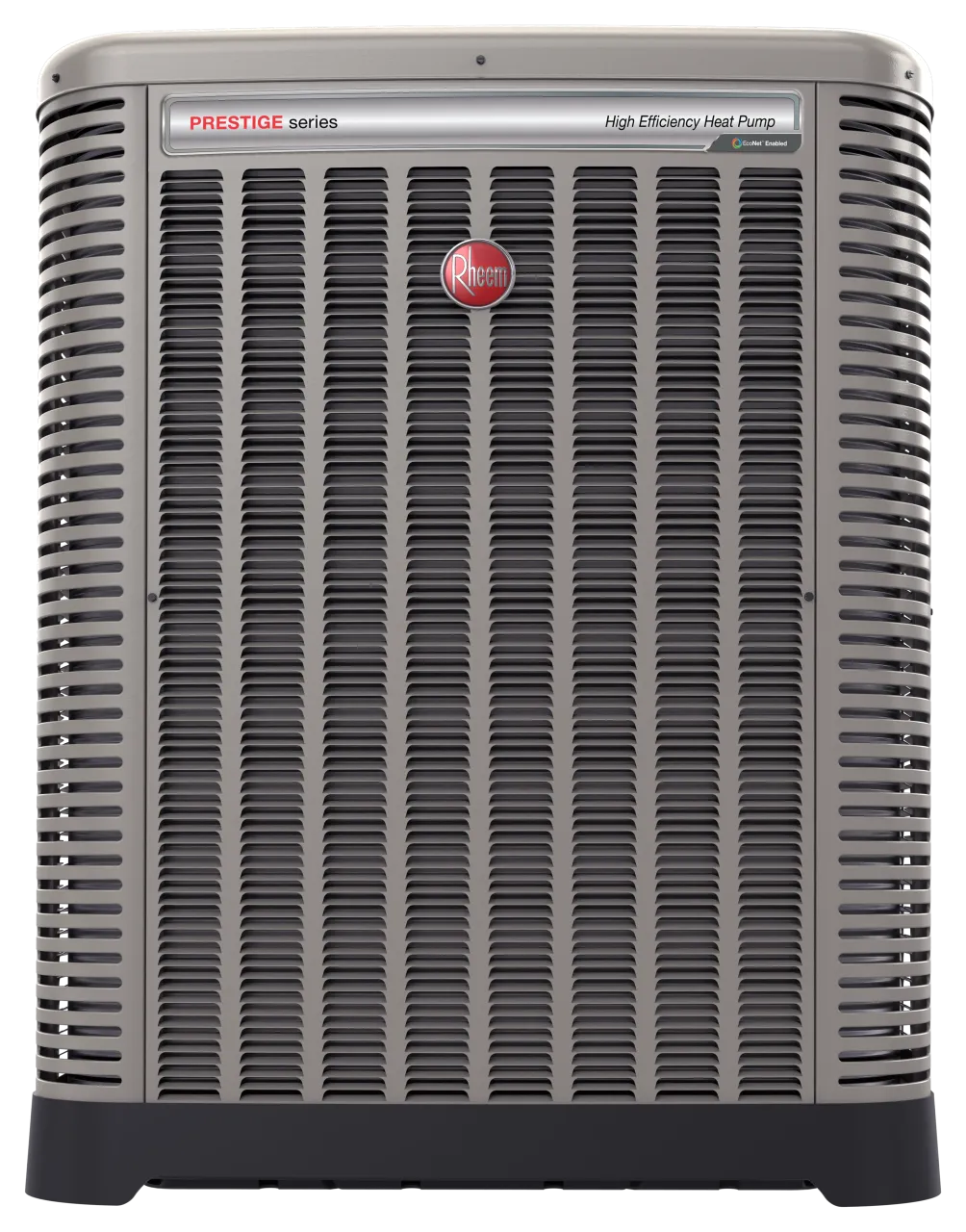

The Rheem Endeavor Line Prestige Series heat pump delivers premium comfort and high efficiency for residential applications. Its inverter-driven, variable-speed technology provides precise temperature and humidity control by continuously adjusting to meet changing heating and cooling demands. This ENERGY STAR® certified unit operates with R-454B, a refrigerant with a lower Global Warming Potential (GWP), contributing to reduced environmental impact. Built for durability, it features corrosion-resistant components and a robust cabinet design to ensure reliable performance.
- Eco
- Net® Enabled:Allows for automatic system configuration and performance optimization when paired with an Eco
- Net® Smart Thermostat.
- Advanced Diagnostics:Plus
- One® Diagnostics with Bluetooth® connectivity simplifies setup, monitoring, and troubleshooting through the Rheem Contractor and Eco
- Net® apps.
- Variable-Speed Performance:The inverter-driven scroll compressor operates from 40% to 100% capacity, offering precise temperature control and superior humidity management.
- Quiet Acoustics:Features Swept Wing fan technology and a composite base pan for significantly reduced operational sound levels.
- Refrigerant Detection:Includes the Plus
- One® Refrigerant Detection System™, an integrated A2
- L sensor and mitigation board for simplified commissioning and system protection.
