| Air Flow Direction | : | Upflow~Downflow~Horizontal~Multi-Position |
| BTU Cooling Rating (Custom) | : | 96,000 BTU/h |
| BTU Cooling Rating | : | 100,000 BTU/h |
| CFM Airflow (Custom) | : | 1,000~1,100~1,200~1,300~1,400~1,500~1,600~1,700~1,800~1,900 CFM |
| CFM Airflow | : | 1,050-1,850 CFM |
| Depth | : | 22 in |
| Filter Size | : | 16 x 25~23 x 25 in |
| Height | : | 34 in |
| Max Breaker Size | : | 23.2 A |
| Model Number | : | RW1T |
| Motor Type | : | Constant Torque ECM |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Product Family | : | RW1T Series |
| Shipping Weight | : | 129 lbs |
| Tonnage | : | 5.0 Ton |
| Voltage Rating | : | 115 V |
| Width | : | 24.5 in |

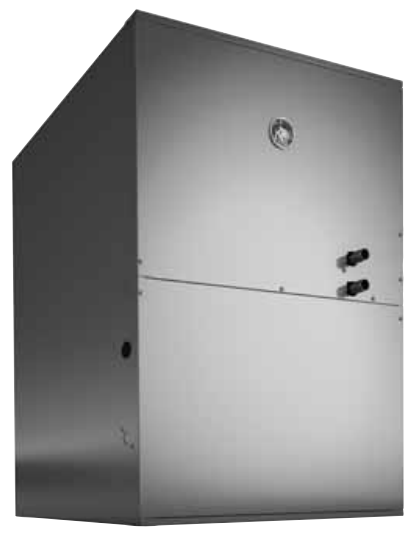

The Rheem RW1T Series hydronic air handler is designed for integrated home comfort systems, using a tankless water heater as its heat source. This unit features a hydronic heating coil instead of traditional electric elements or gas exchangers, providing an efficient heating solution.Built for installation flexibility, this multi-position air handler can be configured for upflow, downflow, or horizontal applications. The Constant Torque ECM motor ensures consistent airflow, while an insulated blower compartment provides quiet operation.
- Installation Versatility:Field-convertible for upflow, downflow, and horizontal configurations with electrical connections available on either the left or right side.
- Efficient Airflow:Equipped with a Constant Torque ECM motor to provide consistent and efficient airflow for home comfort.
- Quiet Operation:Features a fully insulated blower compartment that minimizes operational noise.
- Integrated Controls:An onboard control board manages all operational functions, includes diagnostics, and provides hookups for a humidifier or electronic air cleaner.
- Durable Construction:Built with a pre-painted galvanized steel cabinet and a stainless steel water pump for long-lasting performance.
- Compact Design:A low-profile 34-inch height allows for easier handling and leaves room for optional accessories in tight spaces.
