| Air Flow Direction | : | Vertical |
| BTU Cooling Rating (Custom) | : | 40,000 BTU/h |
| BTU Cooling Rating | : | 42,000 BTU/h |
| Compressor Type | : | Scroll |
| Depth | : | 33.656 in |
| EER2 Range | : | 8.5-12.0 |
| EER2 | : | 8.0~9.0~10.0~11.0~12.0 |
| ENERGY STAR Certified | : | Yes |
| Height | : | 27.167 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 35 A |
| Minimum Circuit Ampacity (MCA) | : | 23 A |
| Model Number | : | WA13NY |
| Number of Stages | : | Single-Stage |
| Packaged Depth | : | 36.63 in |
| Packaged Height | : | 29.06 in |
| Packaged Width | : | 36.63 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line Select |
| Product Weight | : | 245 lbs |
| Refrigerant Type | : | R-454B |
| SEER2 Rane | : | 13.4-15.5 |
| SEER2 | : | 13.0~14.0~15.0 |
| Shipping Weight | : | 275 lbs |
| Sound Level | : | 68 dB(A) |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 3.5 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 33.656 in |

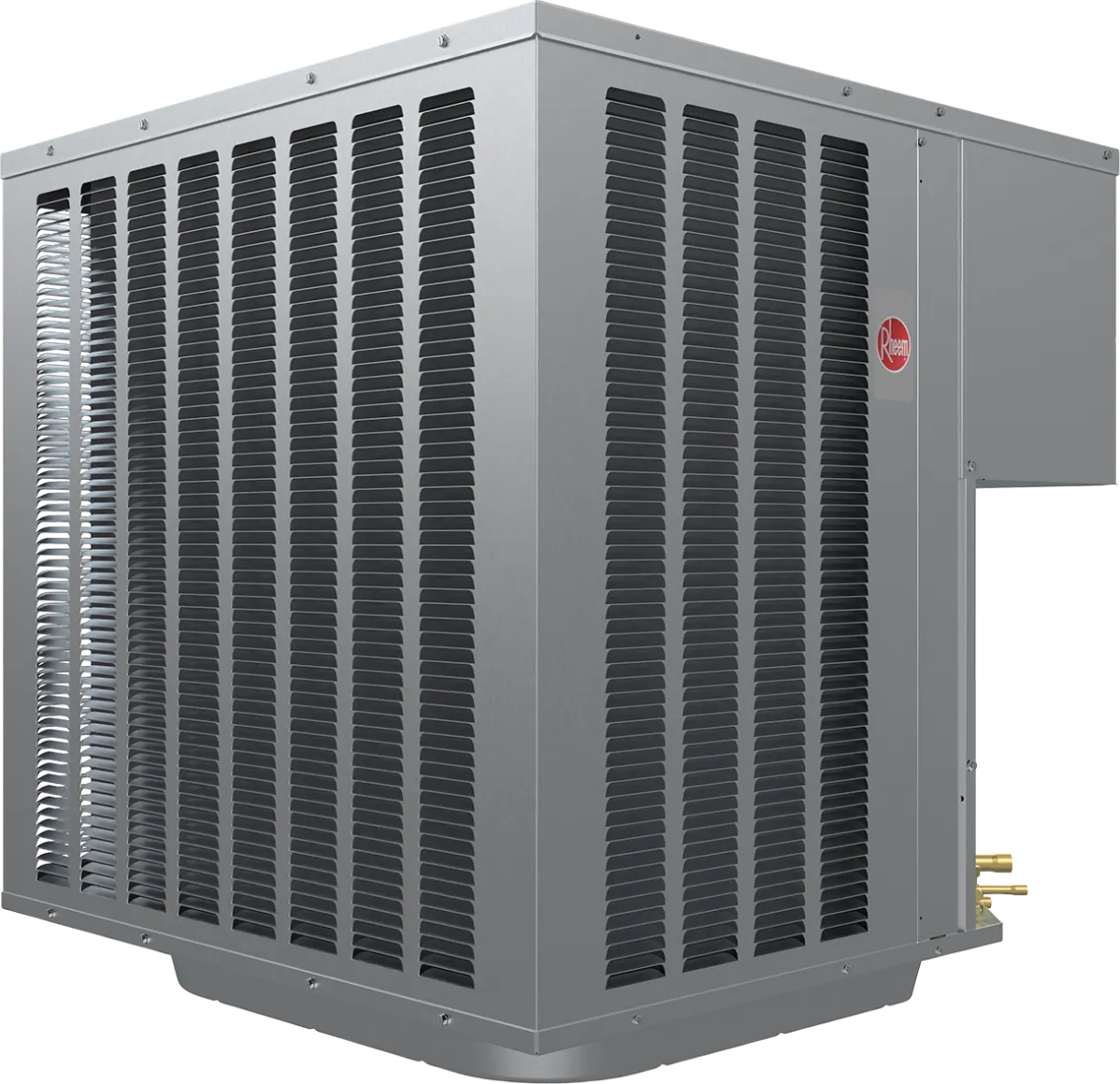

This Endeavor Line Select series air conditioner is a single-stage condenser designed for reliable and efficient residential cooling. As an ENERGY STAR certified unit, it delivers dependable comfort while meeting modern environmental standards by using R-454B, a refrigerant with a low Global Warming Potential (GWP).Built for a long service life, the unit features a durable, single-stage scroll compressor and is housed in a fully louvered steel cabinet for protection against the elements and yard hazards. Its design also prioritizes serviceability to ensure installation and maintenance are straightforward for technicians.
- Durable Construction:A fully louvered steel cabinet provides robust protection against yard hazards and weather-related corrosion.
- Efficient Copper Coil:The 7mm copper condenser coil requires less refrigerant, contributing to a smaller and lighter footprint while enhancing system reliability.
- Simplified Service:Features an easily accessible control box and expanded valve space to provide a minimum working area of 27 square inches for faster installation and maintenance.
- Refrigerant Detection System:The integrated Plus
- One® system includes a patented A2
- L sensor and mitigation board that pauses operation for system protection if a refrigerant leak is detected.
- Sustainable Refrigerant:Utilizes R-454
- B refrigerant to comply with 2025 EPA standards, offering a significantly lower GWP than previous-generation refrigerants.
- Quiet Performance:Engineered for quiet operation, with a sound level as low as 68 d
- B(A).
