| Air Flow Direction | : | Vertical |
| BTU Cooling Rating (Custom) | : | 56,000 BTU/h |
| BTU Cooling Rating | : | 54,000 BTU/h |
| Compressor Type | : | Scroll |
| Depth | : | 35.53 in |
| EER2 Range | : | 10.7-13.0 |
| EER2 | : | 10.0~11.0~12.0~13.0 |
| ENERGY STAR Certified | : | Yes |
| Height | : | 51.66 in |
| Liquid Line Size | : | 3/8 in |
| Max Breaker Size | : | 60 A |
| Minimum Circuit Ampacity (MCA) | : | 40 A |
| Model Number | : | WA14AZ |
| Number of Stages | : | Single-Stage |
| Packaged Depth | : | 38.63 in |
| Packaged Height | : | 53.06 in |
| Packaged Width | : | 38.63 in |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line Select |
| Product Weight | : | 246 lbs |
| Refrigerant Type | : | R-410A |
| SEER2 Rane | : | 13.6-16.0 |
| SEER2 | : | 13.0~14.0~15.0~16.0 |
| Shipping Weight | : | 295.5 lbs |
| Sound Level | : | 75.8 dB(A) |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 5.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 35.53 in |

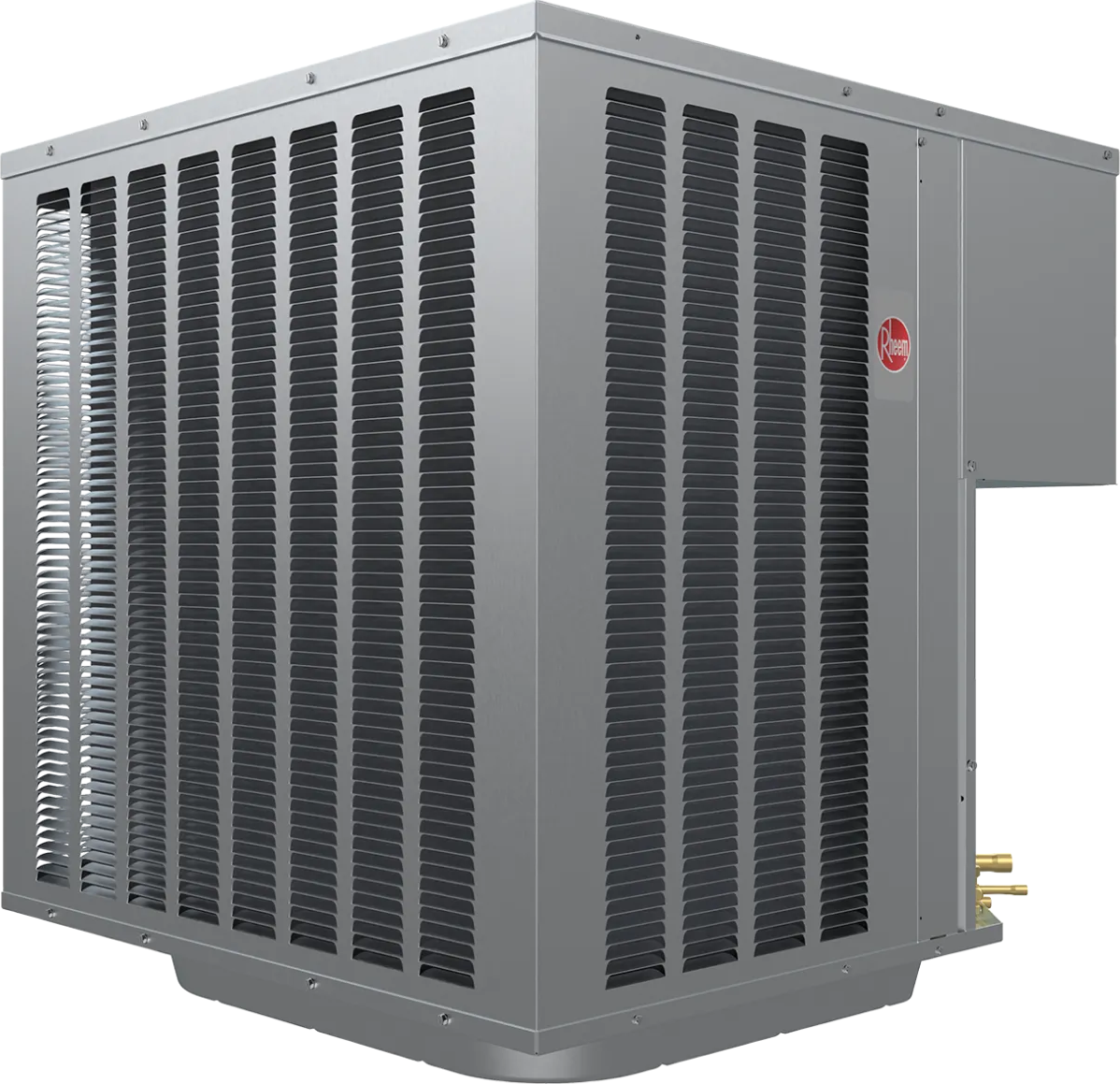

The Rheem Endeavor Line Select WA14AZ Series air conditioner offers reliable, single-stage cooling for residential applications. This unit delivers efficient performance with a SEER2 rating of up to 16.0 and is ENERGY STAR certified, helping to lower utility costs.Built for durability and quiet operation, this condenser features a robust design with integrated sound-dampening technologies. Its construction focuses on protecting internal components and ensuring long-term performance, making it a dependable choice for home comfort.
- Durable Cabinet:A fully louvered steel cabinet with rugged corner posts provides protection from yard hazards and weather corrosion.
- Optimized Coil Design:Features a 7mm coil design that improves airflow and heat transfer for greater energy efficiency.
- Easy Servicing:The control box is easily accessible to simplify installation and maintenance procedures.
- Corrosion Resistance:A one-piece drawn and painted base pan elevates the coil off the pad, helping to minimize corrosion and reduce operating sound.
- Reliable Compressor:Equipped with a durable scroll compressor featuring an internal pressure relief valve and thermal overload for long-lasting performance.
