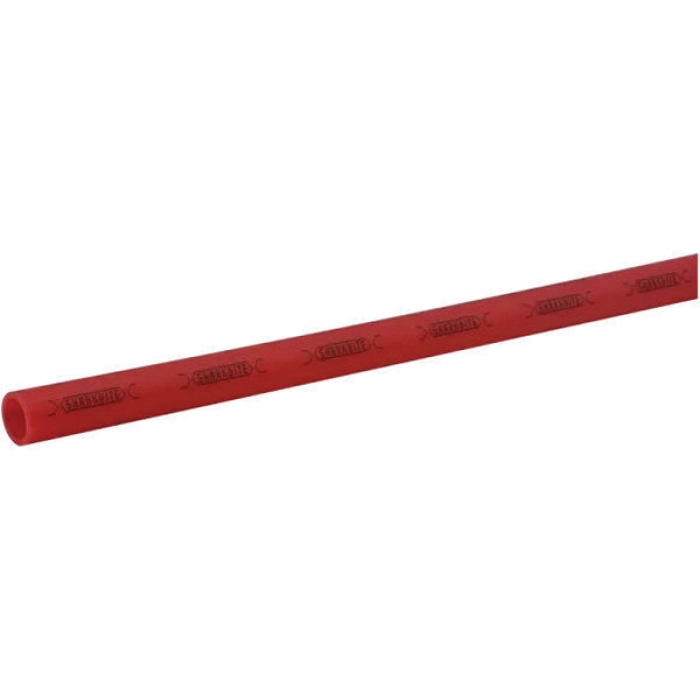

SharkBite™ U870R10 PEX-b Straight Length Tubing, 3/4 in Nominal Pipe, 10 ft Length, Red, 7/8 in Outside Diameter
SharkBite™ U870R10 PEX-b Straight Length Tubing, 3/4 in Nominal Pipe, 10 ft Length, Red, 7/8 in Outside Diameter
Manufacturer: Reliance Worldwide Corporation
Brand: SharkBite™
Part #: 308437
MPN: U870R10
CPN:
| ASTM Specifications | : | Yes |
| Color | : | Red |
| Length | : | 10 ft |
| Maximum Working Pressure | : | 160 psi |
| Minimum Bend Radius | : | 7 in |
| NSF Certified | : | Yes |
| Nominal Pipe Size | : | 3/4 in |
| Operating Temperature Rating | : | 300 to 200 deg F |
| Outside Diameter | : | 7/8 in |
| Wall Thickness | : | 0.097 in |
Faster installation compared to rigid pipe. Flexible pipe reduces the number of connection points -- reducing cost, time and potential leak points. Freeze-resistant pipe can expand slightly if frozen and contract when thawed. Ideal for hot and cold potable water distribution, fire protection and municipal water service lines.
SharkBite™ PEX-b Straight Length Tubing, 3/4 in Nominal Pipe, 10 ft Length, Red, 7/8 in Outside Diameter, 0.097 in Wall Thickness, 7 in Minimum Bend Radius, Yes, Yes, 160 psi Maximum Working Pressure, 300 to 200 deg F
- PEX-b offers the highest-rated chlorine resistance and six-month UV resistance
- Approved for water service lines and burial applications including being buried under concrete
- Approved for use with SharkBite EvoPEX™, SharkBite Universal push-to-connect (ASSE 1061), plastic barb (ASTM F2159) and brass barb (ASTM F1807) fittings
- Certified to meet ASTM F2023 oxidative-resistance requirements for continuous hot water recirculation
- Minimum working temperature 33 deg F at 160 psi. Maximum working temperature 200 deg F at 80 psi
- Maximum working pressure 160 psi at 33 deg F - 70 deg F
- Made in USA
