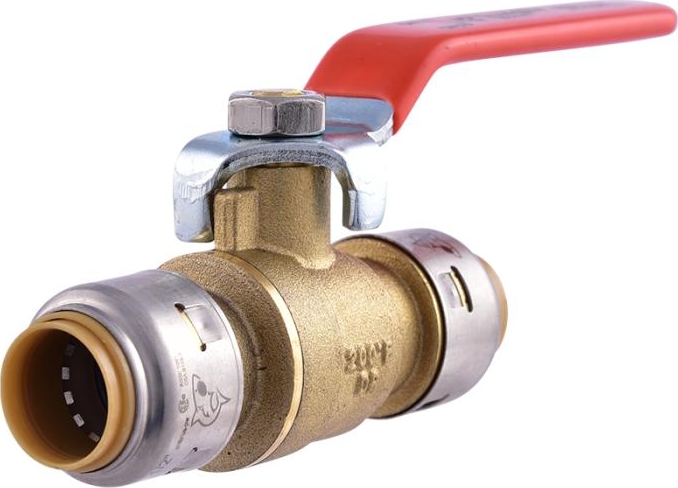

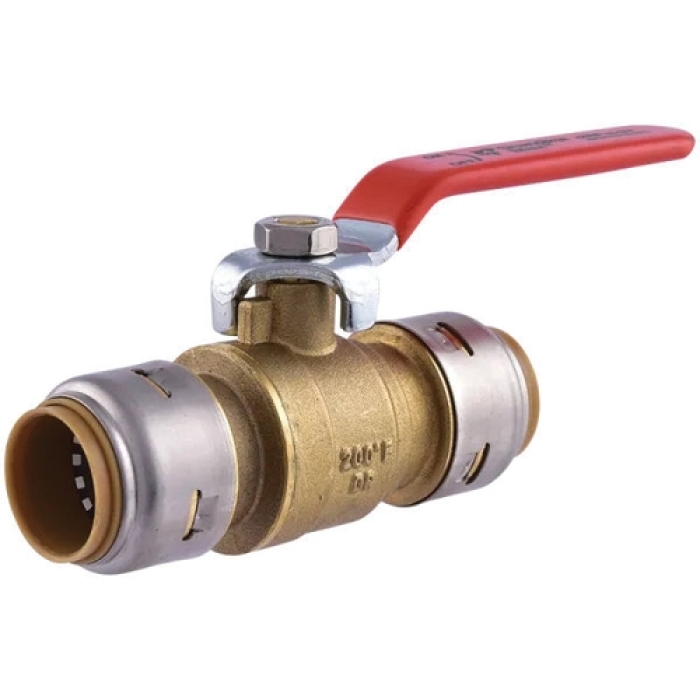

SharkBite™ UR22185 Ball Valve, 3/4 in, 3/4 in, Push-Fit, 3/4 in, Push-Fit, Brass Body, 200 psi Max Working Pressure
SharkBite™ UR22185 Ball Valve, 3/4 in, 3/4 in, Push-Fit, 3/4 in, Push-Fit, Brass Body, 200 psi Max Working Pressure
| Applicable Media | : | Water |
| Body Material | : | Brass |
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 3/4 in |
| Connection Type 1 | : | Push-Fit |
| Connection Type 2 | : | Push-Fit |
| Maximum Working Pressure | : | 200 psi |
| NSF Specifications | : | Yes |
| Nominal Size | : | 3/4 in |
| Operating Temperature Rating | : | 200 deg F |
| Operator Type | : | Handle |
| Port Type | : | Full |
| Seal Material | : | EPDM |
| Width | : | 5.8 in |
SharkBite Max ball valves' innovative push-to-connect design makes for quick and easy installation when needing to install a new or replacement ball valve. Compatible with PEX, copper, CPVC and PE-RT pipe in any combination without a need for soldering, clamps, glue or unions. The valve can be installed where water shut off is needed and rotated after install for easier installation in tight spaces.
SharkBite™ Ball Valve, 3/4 in Nominal, 3/4 in Connection Size 1, Connection Type 1: Push-Fit, 3/4 in Connection Size 2, Connection Type 2: Push-Fit, Brass Body, 200 psi Maximum Working Pressure, Full Port, EPDM Seal, Applicable Media: Water, 5.8 in Width, Handle Operator, 200 deg F Operating Temperature, NSF Specifications: Yes
- Fastest way to connect PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe
- Half the insertion effort, double the burst pressure
- Can be installed on wet lines and pressure tested immediately
- Stainless steel retainer adds strength and durability
- High-performance DZR lead-free brass body
- No special tools, crimping, soldering or glue required
- Can be rotated after installation
- No tube liner required for PEX
- Rated to 200 deg F and 400 psi
