| Conductor Material | : | Copper |
| ETL Listed | : | Yes |
| For Use With | : | Thermostat |
| Function Type | : | Thermostat Wire |
| Jacket Color | : | White |
| Jacket Material | : | Plenum-Rated |
| Jacket Type | : | CMP~CL2 |
| Length | : | 250 ft |
| Number of Conductors | : | 8 |
| Operating Temperature Rating | : | -4-140 F |
| Package Quantity | : | 1 |
| Package Type | : | Spool |
| Packaged Depth | : | 5.6 in |
| Packaged Height | : | 8.3 in |
| Packaged Width | : | 5.8 in |
| Shielded | : | No |
| Shipping Weight | : | 13.95 lbs |
| Solid/Stranded | : | Solid |
| UL Listed | : | Yes |
| UV Resistant | : | Yes |
| Voltage Rating | : | 300 V |
| Wire Size | : | 18 AWG |

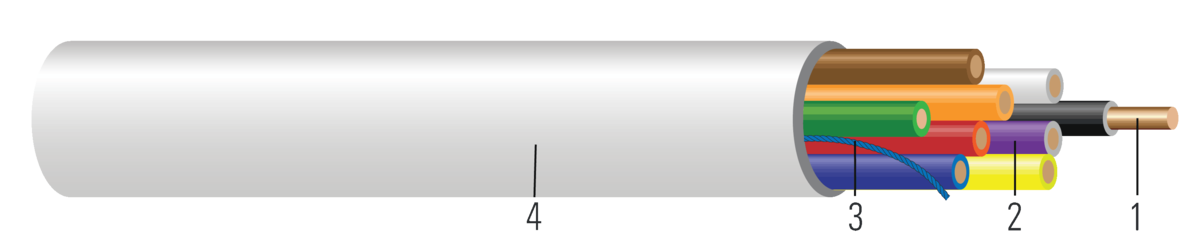

This 18 AWG, 8-conductor thermostat wire is designed for thermostat control wiring in residential and commercial HVAC systems. It is a Class 2 power-limited circuit cable, rated for 300V applications.Its CMP plenum rating allows for installation in air-handling spaces like plenums, ducts, and above suspended ceilings without the need for conduit, simplifying installation and saving costs. The solid copper conductors provide dependable connectivity for control circuits.
