| Pressure Rating | : | 700 psi |
| Series | : | P51 Series |
| Temperature Rating | : | -4 to 140 deg F |

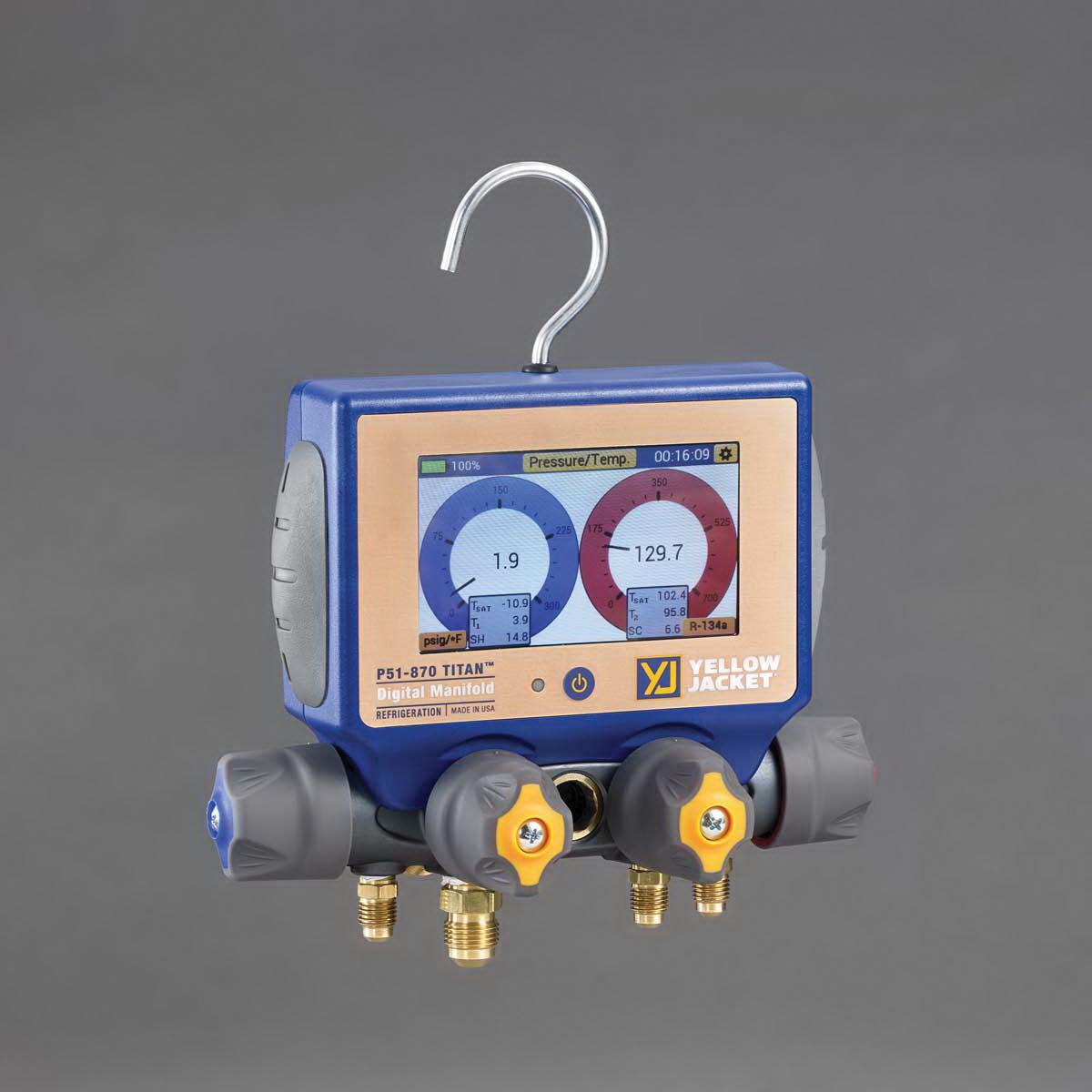

Yellow Jacket® Manifold, P51 Series, 700 psi, -4 to 140 deg F
- Measures high and low side pressures and temperatures
- Displays vapor and liquid saturation temperatures
- System superheat and sub cooling calculations
- On board data logging, export to your computer through USB or to your phone via the ManTooth app
- Pressure hold mode displays rate of change for both vacuum and positive pressure measurements
- 4-way Titan valve block
- 126 refrigerant profiles stored in the instrument including new blends not currently on the Refprop database
- Backlit display with auto-dimming
- Auto shut-off
- Bluetooth capability for use with ManTooth app
- Includes (2) temperature clamps
- Vacuum measurements, targets and leak testing
- High and low alarms
- Re-chargeable battery with battery life indicator
- 80 hr continuous use no backlight
- 4 hr continuous use full backlight
- US and international units (bar, psia, psi, kPa, MPa, kg/cm2)
- Maximum working pressure 700 psia (48.3 bar)
- USB charging port
- Robust housing
