| BTU Cooling Rating (Custom) | : | 18,000 BTU/h |
| BTU Cooling Rating | : | 18,000 BTU/h |
| BTU Heating Rating (Custom) | : | 18,000 BTU/h |
| BTU Heating Rating | : | 18,000 BTU/h |
| CFM Airflow (Custom) | : | 300~400~500~600 CFM |
| CFM Airflow | : | 371-530 CFM |
| Depth | : | 34.6 in |
| EER (Custom) | : | 12.0 |
| EER2 (Custom) | : | 11.0~12.0 |
| EER2 | : | 11.7-12.5 |
| EER | : | 12.5 |
| ENERGY STAR Certified | : | Yes |
| HSPF (Custom) | : | 9.0~10.0 |
| HSPF | : | 9.0-10.5 |
| Height | : | 8.3 in |
| Liquid Line Size | : | 1/4 in |
| Max Breaker Size | : | 20 A |
| Model Number | : | BMS500 |
| Motor Type | : | PSC |
| Number of Speeds | : | 3 |
| Packaged Depth | : | 34.7 in |
| Packaged Height | : | 8.3 in |
| Packaged Width | : | 28.5 in |
| Phase | : | 1 ph |
| Product Family | : | Climate 5000 |
| Product Type | : | Concealed Ducted |
| Product Weight | : | 54 lbs |
| Refrigerant Type | : | R-410A |
| Refrigeration Control Type | : | EEV |
| SEER (Custom) | : | 19.0 |
| SEER2 (Custom) | : | 18.0~19.0~20.0 |
| SEER2 | : | 18.0-20.0 |
| SEER | : | 19.0 |
| Shipping Weight | : | 66.1 lbs |
| Sound Level | : | 39 dB(A) |
| Suction Line Size | : | 1/2 in |
| Tonnage (Custom) | : | 1.5 Ton |
| Tonnage | : | 1.5 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 26.5 in |

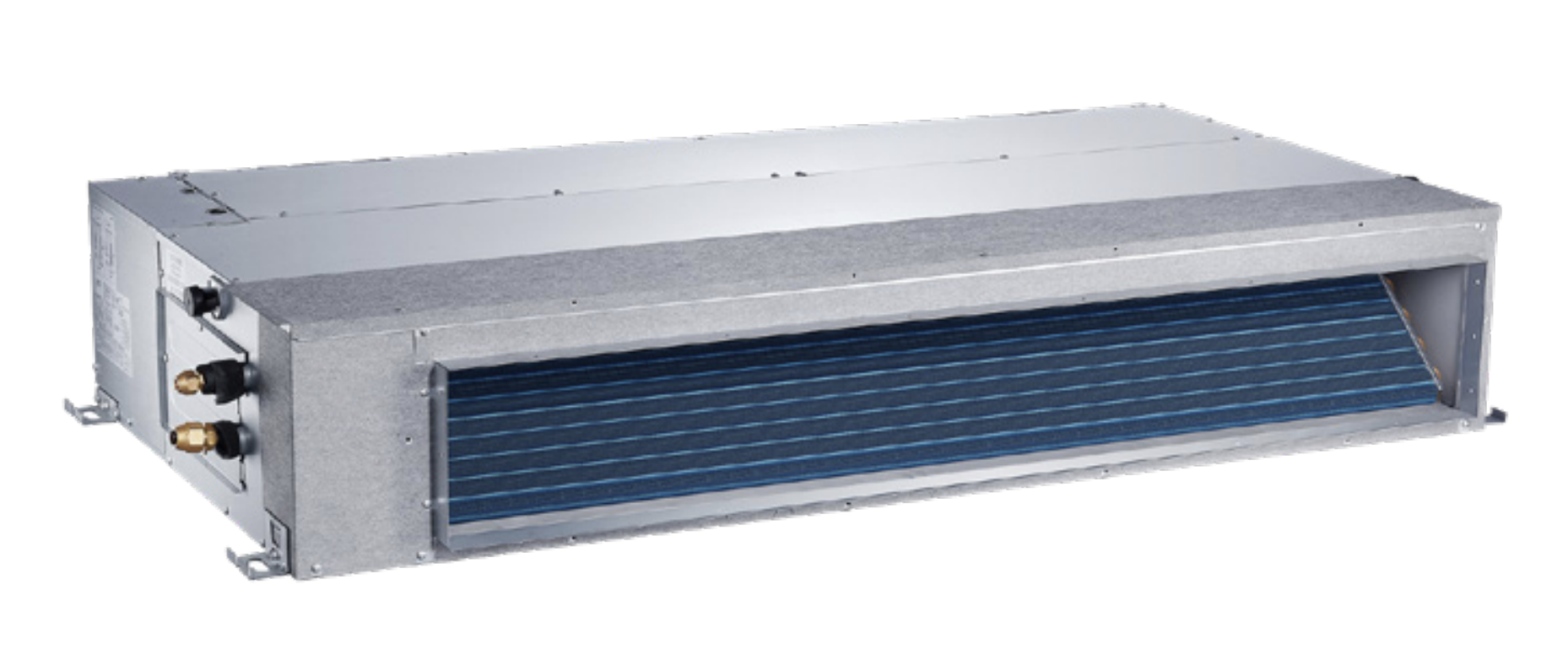

The Bosch Climate 5000 Series concealed ducted unit provides an efficient and discreet single-zone heating and cooling solution. Designed for hidden installation above a ceiling or in a conditioned closet, it delivers quiet comfort through conventional ductwork.This ENERGY STAR certified unit utilizes an electronic expansion valve and a multi-speed fan to achieve high efficiency ratings. It offers flexibility for residential and light commercial applications where preserving aesthetics is essential.
- Integrated Condensate Pump:Includes a built-in condensate lift pump to simplify installation and provide greater flexibility in positioning.
- Flexible Control:Can be operated with an optional wired wall thermostat or integrated with a conventional 24
- V thermostat via an accessory interface.
- Efficient Operation:Features an electronic expansion valve (EEV) that precisely controls refrigerant flow for optimized performance and efficiency.
- Quiet Performance:Delivers comfort with minimal disruption, operating at sound levels between 35 and 39 d
- B(A).
- Fresh Air Intake:Equipped with a provision for a fresh air intake to help improve indoor air quality.
- Multi-Speed Fan:A 3-speed fan motor allows for adjustable airflow to match comfort needs and system requirements.
