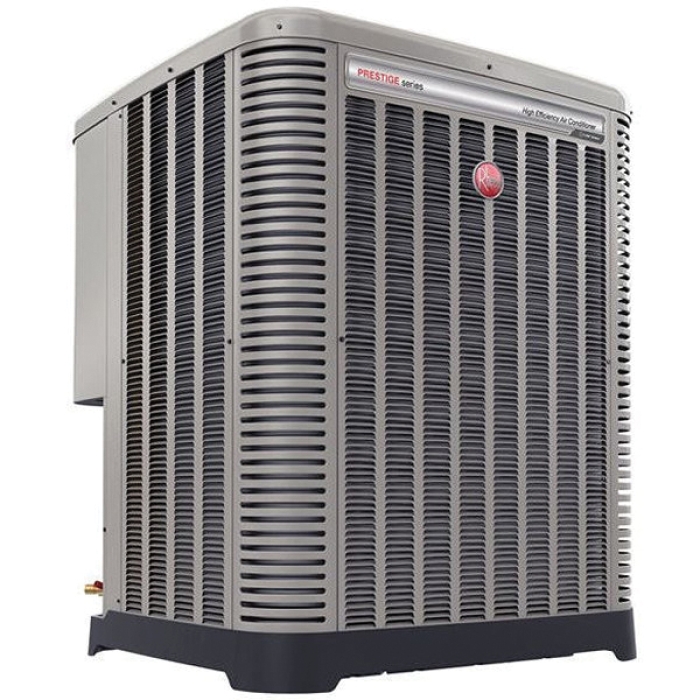

Rheem® Endeavor® RA19AY60AJVCA Air Conditioner, 5 ton Tonnage, R-454B Refrigerant, 54000 Btu/hr BTU Cooling Rating
Rheem® Endeavor® RA19AY60AJVCA Air Conditioner, 5 ton Tonnage, R-454B Refrigerant, 54000 Btu/hr BTU Cooling Rating
Manufacturer: Rheem Manufacturing
Brand: Rheem®
Part #: 307666
MPN: RA19AY60AJVCA
CPN:
| BTU Cooling Rating | : | 54,000 Btu/hr |
| Depth | : | 36.13 in |
| EER2 | : | 13.0 |
| Energy Star Certified | : | Yes |
| Height | : | 51.17 in |
| Liquid Line Size | : | 3/8 in |
| Minimum Circuit Ampacity (MCA) | : | 30 A |
| Model Number | : | RA19AY |
| Number of Rows | : | 1 |
| Number of Stages | : | Variable |
| Phase | : | 1 ph |
| Product Family | : | Endeavor Line Prestige Series |
| Product Weight | : | 307 lb |
| Refrigerant Type | : | R-454B |
| SEER2 | : | 20.0 |
| Sound Level | : | 76 dBA |
| Suction Line Size | : | 7/8 in |
| Tonnage | : | 5.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 36.13 in |
Rheem® Air Conditioner, Tonnage: 5 ton, R-454B Refrigerant, BTU Cooling Rating: 54000 Btu/hr, 208-230 V, SEER2: 20, EER2: 13, 1 ph Phase, Yes, 76 dB Sound Level, Endeavor® Line Prestige Series, Inverter Driven Compressor, 3/8 in Liquid Line, 7/8 in Suction Line, 51-1/6 in Height, 36-2/15 in Width, 36-2/15 in Depth, Minimum Circuit Ampacity (MCA): 30 A, 1 Rows
- EcoNet® Enabled Automatic system configuration and optimization
- PlusOne® Diagnostics adn Bluetooth Connectivity With the Rheem Contractor adn EcoNet® Apps, built-in technology makes advanced set-up, monitoring, troubleshooting, and repairing the product easier than ever before
- Brushless DC Condenser Motors (BLDC) Enhances reliability and allows for easier serviceability
- Swept Wing Fan Technology Features quieter operation and improved unit acoustics
- PlusOne® Expanded Valve Space 3 in - 4 in - 5 in. service valve space - provides a minimum working area of 27-square inches for easier access
- PlusOne® Triple Service Access 15 in. wide, industry leading corner service access, two fastener, removable corner and individual louver panels - makes repairs easier and faster
- This new requirement will result in a 78% lower GWP than previous-generation refrigerants with only minimal changes to system installation
- For us, this is another step toward our continued sustainability goal of reducing greenhouse gas emissions, while still delivering an exceptional level of energy efficient, dependable comfort
- An integrated one-box, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application and system protection by automatically pausing outdoor unit operation - if excess refrigerant is detected
